Description
Bambu Lab H2D Multifunctional 3D Printer
This is a basic model that is suitable for those who want a reliable and multifunctional device without spending too much money. It combines 3D printing, digital cutting and drawing in one unit, saving you workspace. Its ease of use, automation and precision save time and materials, making the H2D a great choice for everyday use at home or in the workshop.
Printer Features
- Print area: 350 x 320 x 325 mm.
- Dual-extruder system for multi-material printing.
- Maximum extruder temperature: 350°C.
- Laser engraving and cutting (10W or 40W).
- Digital cutting and drawing on various materials.

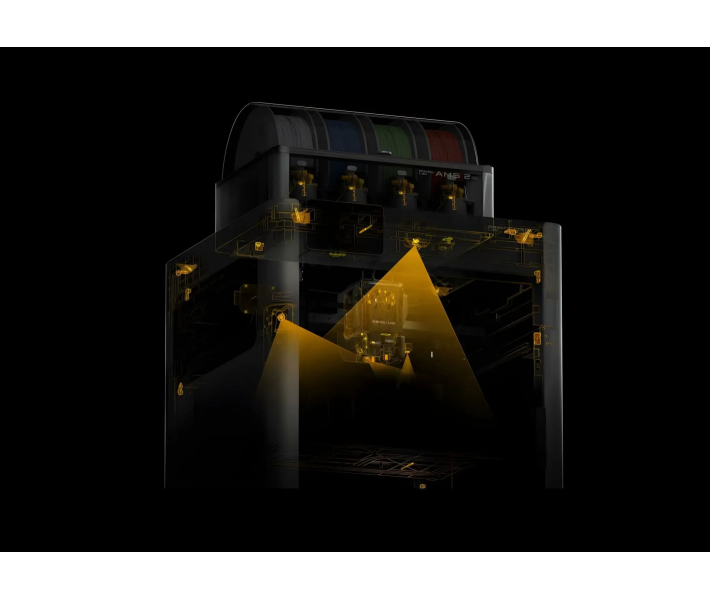

- Integrated computer vision system with four cameras.
- Automatic calibration and material thickness detection.
- Optional air filter for safe laser operation.
Laser Engraving and Cutting
The Bambu Lab H2D printer is equipped with a 455 nm wavelength laser and options for 10W or 40W power, allowing cutting of materials up to 15 mm thick. The Air Assist system improves surface quality by directing an air flow to cool the cutting area, ensuring cleaner and more precise results. Additionally, the contactless 3D scanning feature allows for precise processing of curved surfaces.
Digital Cutting and Drawing
The printer supports digital cutting and drawing on various materials, including paper, vinyl, and fabric. Thanks to the Print-Then-Cut function, you can first print an image on a regular printer and then accurately cut its contour using the H2D, achieving perfect alignment between the image and shape.
Intelligent Automation
The Bambu Lab H2D features an automatic calibration system, eliminating the need for manual adjustments. Scanning QR codes on materials automatically loads optimal parameters, greatly simplifying the preparation for printing or cutting.
With the Bambu Lab H2D, you get a versatile tool for implementing various projects, combining cutting-edge technologies and ease of use.
Bambu Lab H2D Technical Specifications
| Printing Technology | FDM (Fused Deposition Modeling) |
| Minimum Layer Height (microns) | 100 |
| Working Area (mm) | 350 × 320 × 325 |
| Filament Diameter (mm) | 1.75 |
| Max. Extruder Temperature (°C) | 350 |
| Number of Extruders | 2 (Independent Dual Extrusion) |
| Print Speed (mm/s) | Up to 500 |
| Acceleration (mm/s²) | 20000 |
| Laser Module (Optional) | 10W, 455 nm |
| Laser Cutting Depth | Up to 15 mm |
| Laser Cutting Materials | Wood, acrylic, leather, cardboard |
| Cutting and Drawing Materials | Paper, vinyl, fabric, stickers |
| Print-Then-Cut Function | Yes |
| Camera System | 4 Built-in Cameras |
| Intelligent Sensors | 36 |
| Automatic Calibration | Yes |
| Material Recognition | QR Code + Thickness Detection |
| Filament Storage | Automatic Drying and Feeding |
| Air Filtration | Activated Carbon Filter |
| Connectivity | Wi-Fi, USB, Cloud |
| Compatible Software | Bambu Studio, Cura, PrusaSlicer |
| Device Dimensions (mm) | Approximately 650 × 600 × 600 |
| Country of Manufacture | China |
| Warranty | 12 months |
Please note: Bambu Lab H2D deliveries will begin in June 2025. We are currently accepting pre-orders.
