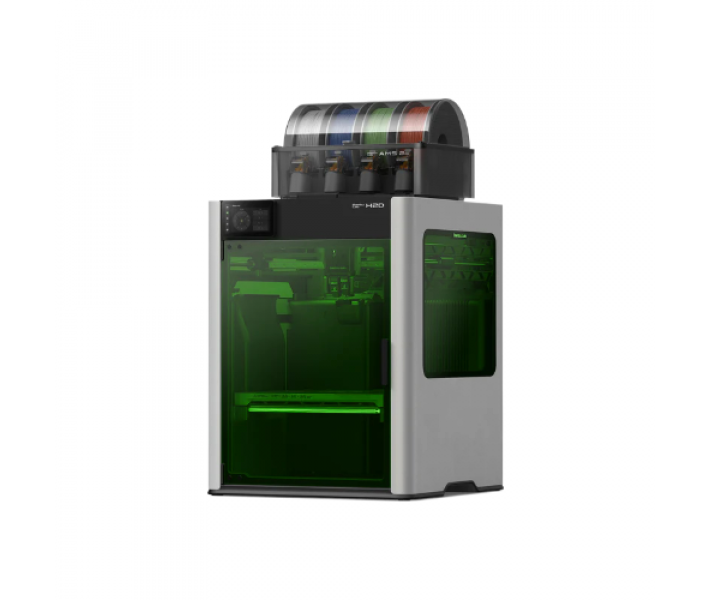

Bambu Lab H2D 40W Multifunctional 3D Printer
The flagship model of the range, combining the most powerful features. In addition to the AMS system and full H2D functionality, this version is equipped with a 40 W laser that allows you to work with thicker and denser materials, including plywood up to 15 mm. It is ideal for professionals and businesses that require high speed, depth of cut and versatility in production.
Printer Features
- Print area: 350 x 320 x 325 mm.
- Two-extruder system for multi-material printing.
- Maximum extruder temperature: 350°C
- Laser engraving and cutting (40W)
- Digital cutting and drawing on various materials

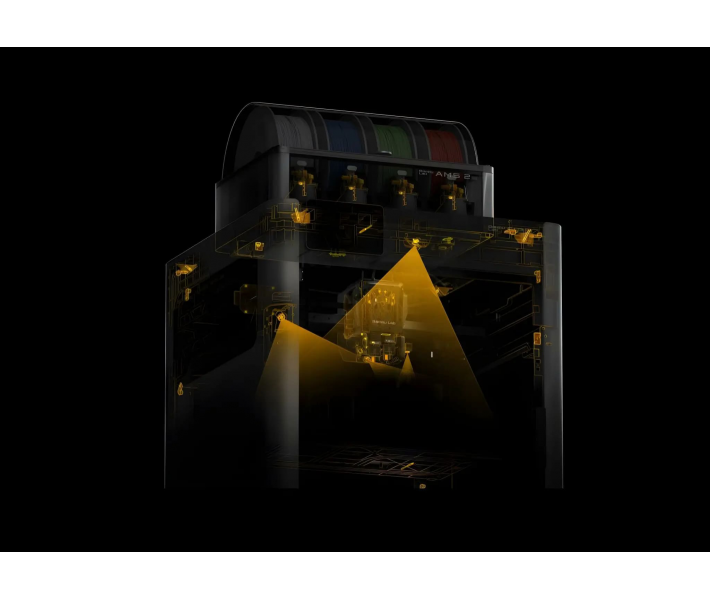

- Integrated computer vision system with four cameras
- Automatic calibration and material thickness detection
- Optional air filter for safe laser operation
Laser Engraving and Cutting
The Bambu Lab H2D 40W printer is equipped with a 455 nm wavelength, 40W laser that allows cutting materials up to 15 mm thick. The Air Assist system improves surface quality by directing airflow to cool the cutting area, ensuring cleaner and more precise results. Additionally, the contactless 3D scanning function enables accurate processing of curved surfaces.
Digital Cutting and Drawing
The printer supports digital cutting and drawing on various materials, including paper, vinyl, and fabric. Thanks to the Print-Then-Cut feature, you can first print an image on a regular printer, and then precisely cut its contour using the H2D 40W, achieving perfect alignment of the image and shape.
Intelligent Automation
The Bambu Lab H2D 40W is equipped with an automatic calibration system, eliminating the need for manual adjustment. Scanning QR codes on materials allows automatic loading of optimal parameters, significantly simplifying the preparation for printing or cutting.
With the Bambu Lab H2D 40W, you get a universal tool for implementing various projects, combining advanced technologies and ease of use.
Technical Specifications of Bambu Lab H2D 40W
| Printing Technology | FDM (Fused Deposition Modeling) |
| Minimum Layer Height (microns) | 100 |
| Working Area (mm) | 350 × 320 × 325 |
| Filament Diameter (mm) | 1.75 |
| Max Extruder Temperature (°C) | 350 |
| Number of Extruders | 2 (Independent Dual Extrusion) |
| Print Speed (mm/s) | Up to 500 |
| Acceleration (mm/s²) | 20000 |
| Laser Module (optional) | 40W, 455 nm |
| Laser Cutting Depth | Up to 15 mm |
| Materials for Laser Cutting | Wood, acrylic, leather, cardboard |
| Materials for Cutting and Drawing | Paper, vinyl, fabric, stickers |
| Print-Then-Cut Feature | Yes |
| Camera System | 4 built-in cameras |
| Intelligent Sensors | 36 |
| Auto Calibration | Yes |
| Material Recognition | QR Code + Thickness Detection |
| Filament Storage | Automatic drying and feeding |
| Air Filtration | Activated carbon filter |
| Connectivity | Wi-Fi, USB, Cloud |
| Compatible Software | Bambu Studio, Cura, PrusaSlicer |
| Device Dimensions (mm) | Approx. 650 × 600 × 600 |
| Country of Manufacture | China |
| Warranty | 12 months |
Please note: Bambu Lab H2D 40W deliveries will begin in June 2025. We are currently accepting pre-orders.
