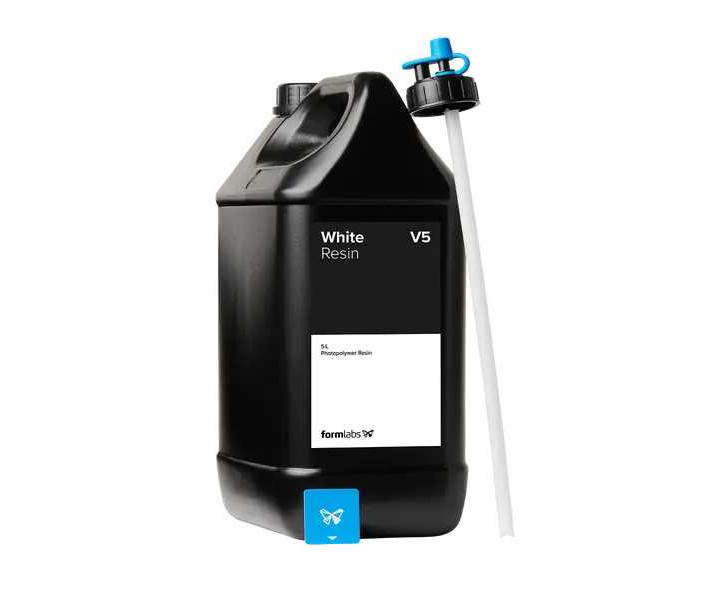

Formlabs White V5 Resin Form 4, 5L

Unlock the full potential of high-speed additive manufacturing with the Formlabs White V5 Resin Form 4, 5L. Designed specifically to leverage the advanced capabilities of the Form 4 ecosystem, this general-purpose material represents a significant evolution in SLA printing. It offers an exceptional balance of rapid print speeds, dimensional precision, and aesthetic appeal. The bulk 5-liter container is perfectly suited for high-volume production environments, ensuring you have the capacity to create intricate prototypes and functional parts without interruption. Please note that this large-format container requires a Resin Pump for operation.

Why Choose Formlabs White V5 Resin for Form 4?

Exceptional Print Speed

The Formlabs White V5 Resin Form 4, 5L features a new chemical formulation that allows it to print up to three times faster than its predecessor, the V4. By taking full advantage of the Form 4's Low Force Display technology, users can iterate designs more quickly and move from concept to physical model in record time without sacrificing surface quality or detail.

Injection-Molded Quality

Achieve a surface finish that rivals mass-produced plastics. This resin cures to a bright, crisp white with a matte texture that captures fine features with incredible accuracy. It is the ideal choice for presentation-ready models, as the clean neutral color highlights intricate details, making it perfect for client demonstrations or anatomical study models where visual clarity is paramount.

Enhanced Mechanical Properties

Beyond aesthetics, this material is built for performance. Compared to previous versions, White Resin V5 is significantly tougher, boasting double the elongation at break and 25% higher impact strength. This versatility allows you to create parts that are not only stiff and strong but also durable enough to withstand handling and functional testing in various engineering applications.

User-Centric Workflow

Formlabs has prioritized the user environment with this formulation. The resin is designed for extremely low-odor printing, emitting ultra-low volatile organic compounds (VOCs). This creates a more pleasant and comfortable atmosphere in office spaces or design labs. Furthermore, post-processing is streamlined, requiring only a simple wash and an optional cure to achieve optimal mechanical characteristics.

Versatile Applications

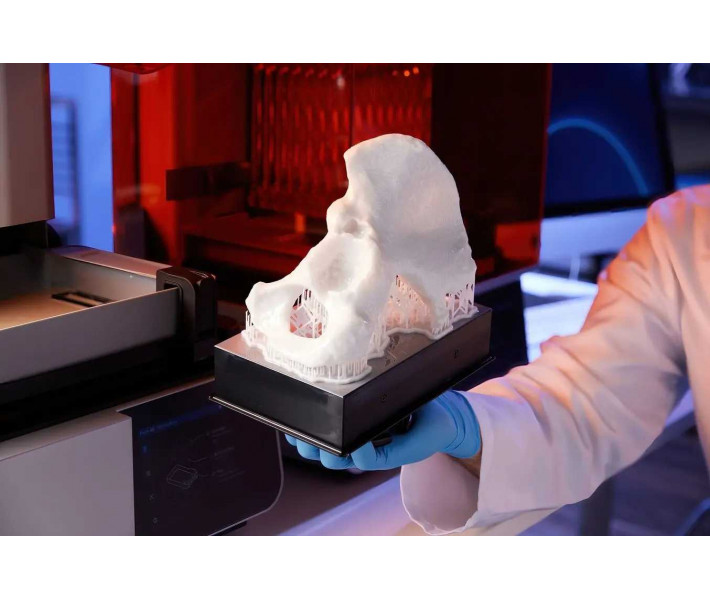

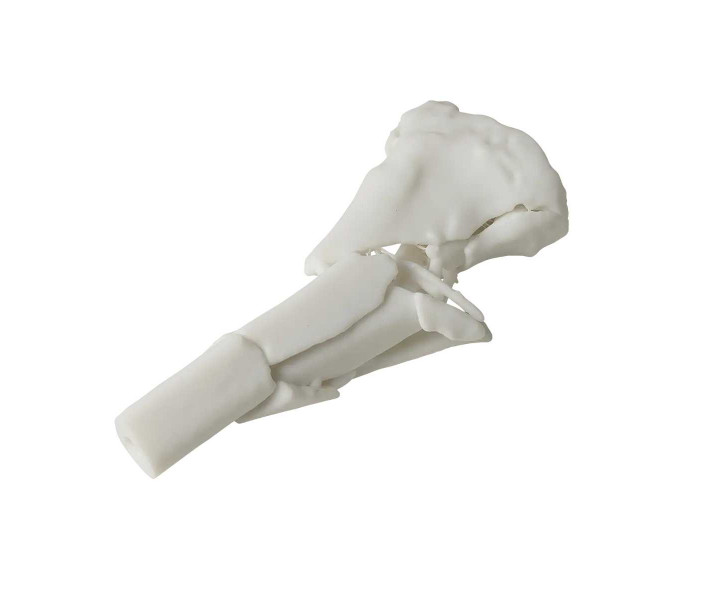

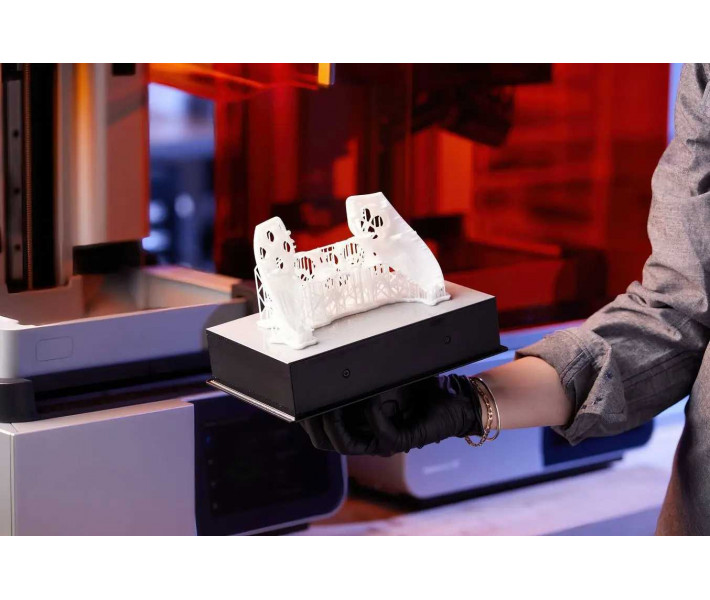

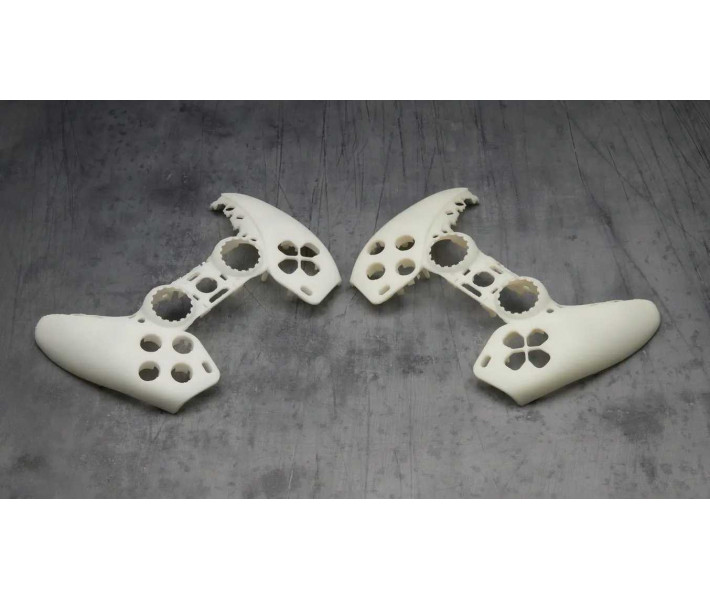

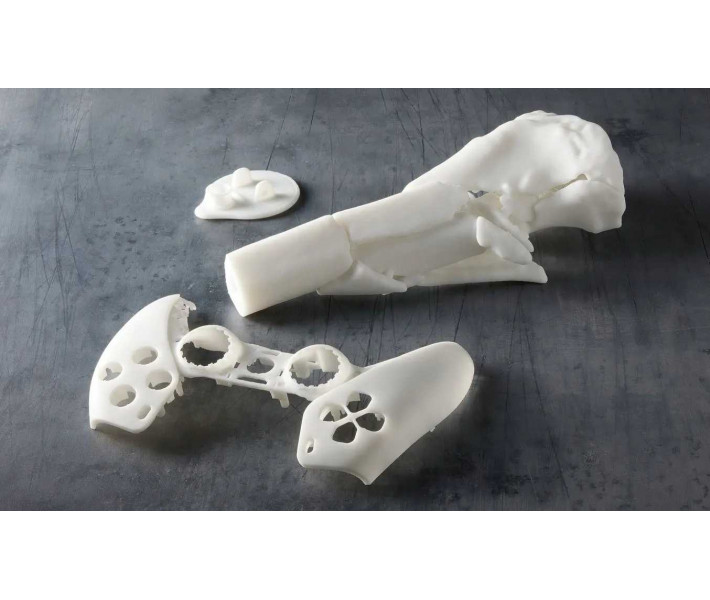

The combination of speed, strength, and visual appeal makes Formlabs White V5 Resin Form 4, 5L a go-to material for a wide array of industries. It is excellent for creating form and fit prototypes, allowing designers to validate geometry instantly. Additionally, it serves well for manufacturing jigs and fixtures, as well as highly detailed anatomical models for the medical sector.

Technical Specifications

• Post-cured at room temperature for 5 minutes:
• Ultimate Tensile Strength: 54 MPa
• Tensile Modulus: 2500 MPa
• Elongation at Break: 15%
• Flexural Strength: 91 MPa
• Flexural Modulus: 2450 MPa
• Notched Izod: 34 J/m
• Heat Deflection Temperature at 0.45 MPa: 62 °C
• Post-cured at 60 °C for 15 minutes:
• Ultimate Tensile Strength: 62 MPa
• Tensile Modulus: 2675 MPa
• Elongation at Break: 13%
• Flexural Strength: 103 MPa
• Flexural Modulus: 2750 MPa
• Notched Izod: 32 J/m
• Heat Deflection Temperature at 0.45 MPa: 71 °C

Buy Formlabs White V5 Resin at 3DDevice

To ensure you receive genuine consumables and professional service, purchase your Formlabs White V5 Resin Form 4, 5L from the 3DDevice online store. We are experts in the additive manufacturing industry with extensive experience dating back to 2012. Our team is dedicated to providing comprehensive advice and assistance in choosing the right materials for your specific needs.

As an official representative of Formlabs, we guarantee the best prices on the market, along with full official warranty and qualified service support. We stand by our customers at every stage, offering expert technical support before, during, and after your purchase to ensure your 3D printing workflow runs smoothly.
