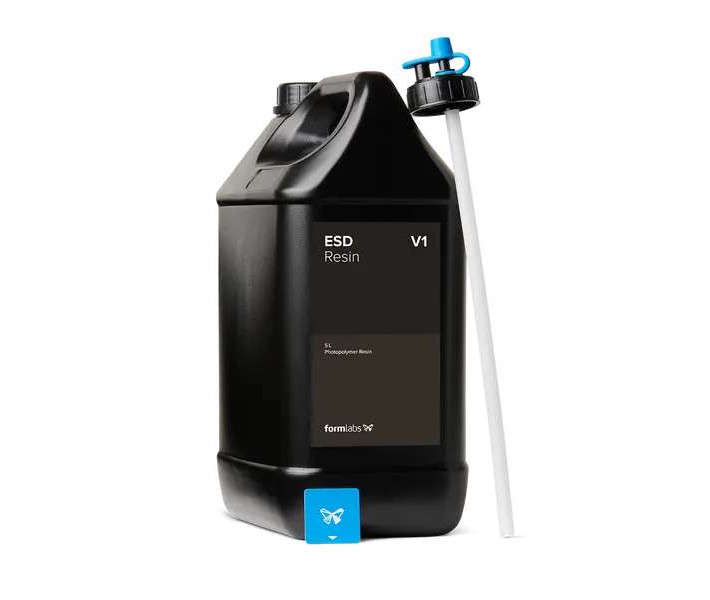

Formlabs ESD Resin, 5L

Optimize Electronics Manufacturing with Formlabs ESD Resin

Unlock the full potential of your in-house production with Formlabs ESD Resin, 5L, a specialized material engineered for the additive manufacturing of static-dissipative parts. This high-performance resin is the ultimate solution for creating custom tools, prototypes, and fixtures that require strict compliance with electrostatic discharge safety standards. By choosing this material, you ensure the integrity of sensitive electronics while maintaining the mechanical robustness necessary for industrial environments. Please note that this 5-liter container requires a Resin Pump for operation, ensuring a seamless workflow for high-volume printing.

Secure Your Production Line

Reliable Protection

Static electricity poses a significant invisible threat to modern manufacturing, often causing catastrophic damage to delicate electronic components through unregulated discharge. Formlabs ESD Resin, 5L is formulated to mitigate this risk effectively. Unlike standard plastics that act as insulators and trap charges, this resin allows static electricity to dissipate safely and specifically. It offers high modulus and impact strength comparable to ABS, meaning you do not have to sacrifice durability for safety. It is the smart choice for reducing failures and increasing yield on your assembly line.

Versatile Industrial Applications

Engineered Utility

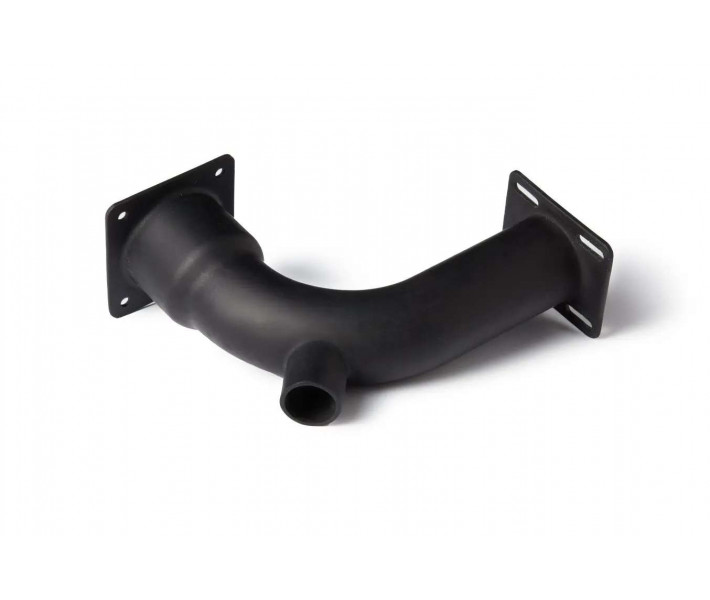

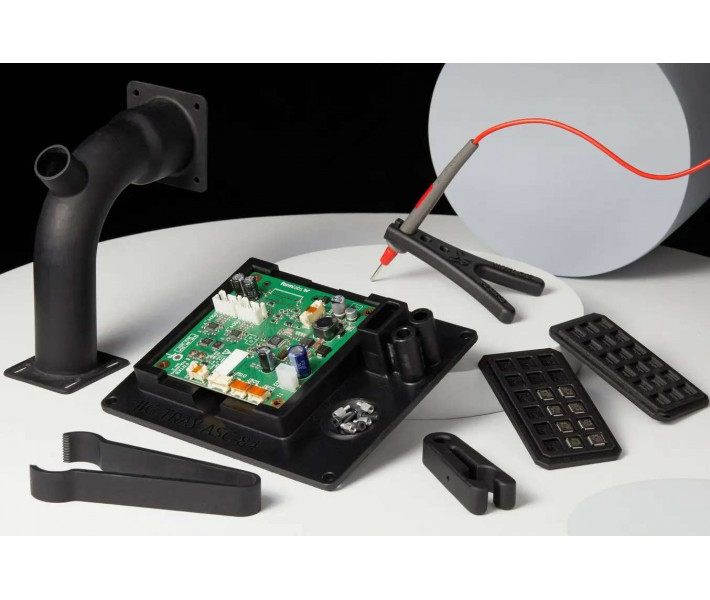

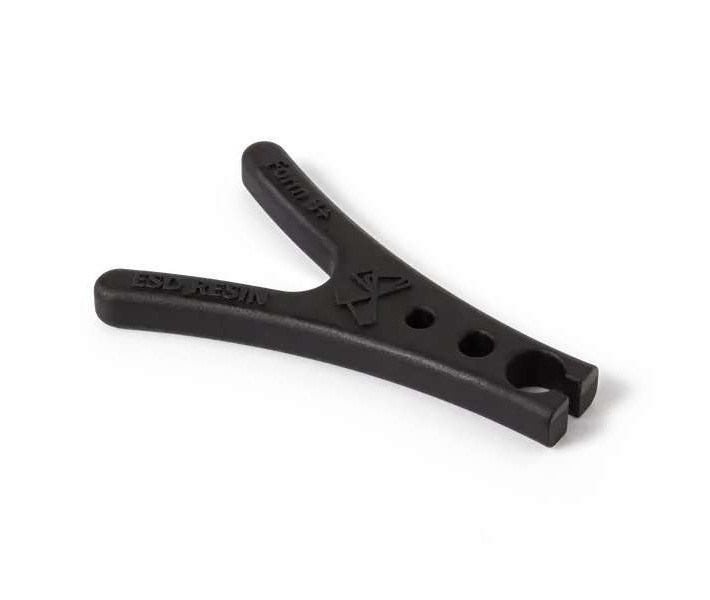

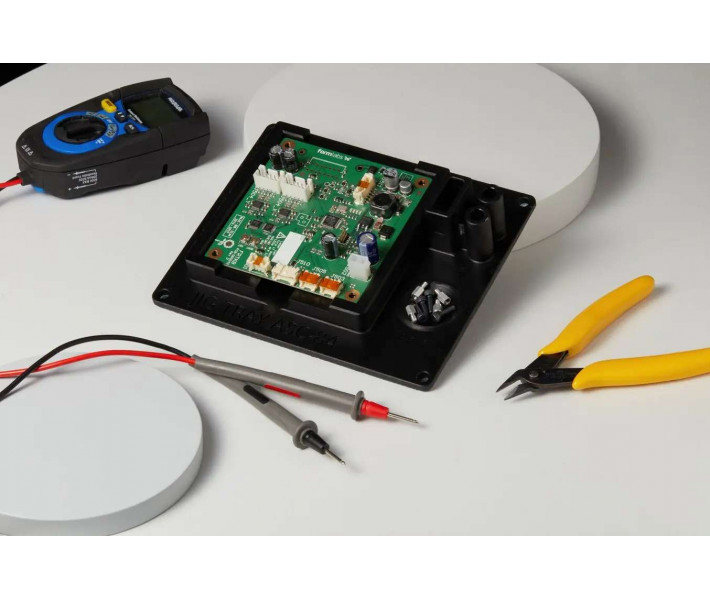

The versatility of this material makes it an indispensable asset for industries ranging from automotive to aerospace and consumer electronics. Formlabs ESD Resin, 5L is ideal for producing cost-effective, custom tooling and fixturing that can withstand the wear and tear of daily use on a factory floor. Whether you need to print anti-static prototype enclosures, end-use components, or custom trays for safe component handling and storage, this resin delivers consistent results. It also repels dust and powder, keeping your production environment cleaner and more efficient.

Material Properties and Handling

Conductive Precision

What sets this material apart is its unique surface resistivity, ranging from 105 to 108 Ohms per square, which makes it more conductive than other Formlabs resins. This property allows electric charges to flow in a controlled manner, preventing dangerous buildup. When printing with Formlabs ESD Resin, 5L, it is crucial to follow proper handling procedures. The liquid resin is conductive, so care must be taken to avoid contact with printer electronics. Post-processing is straightforward but requires a separate wash bucket to prevent cross-contamination, followed by post-curing to achieve optimal mechanical properties and full ESD compliance.

Technical Characteristics

• Material Function: Safely dissipates static buildup to protect sensitive electronics and comply with ESD safety standards.
• Container Size: 5 Liters (Requires Resin Pump).
• Surface Resistivity: 10^5 - 10^8 Ohms/sq (Post-cured at 70ºC).
• Ultimate Tensile Strength: 44.2 MPa.
• Tensile Modulus: 1.937 GPa.
• Strain at Break: 12%.
• Notched Izod Impact Strength: 26 J/m.
• Heat Deflection Temperature (0.45 MPa): 62.2ºC.
• Heat Deflection Temperature (1.8 MPa): 54.2ºC.
• Shelf Life: Recommended 24 months.
• Compatible Printers: Form 3/3+, Form 3B/3B+, Form 3L/3BL, Form 4/4B, Form 4L/4BL.
• Compatible Resin Tanks: Form 3 Tank V2/V2.1, Form 3L Tank (all), Form 4 Tank, Form 4L Tank.
• Layer Thickness (Form 3 Series): 50, 100 microns.
• Layer Thickness (Form 3L Series): 100 microns.
• Layer Thickness (Form 4 Series): 50, 100 microns.
