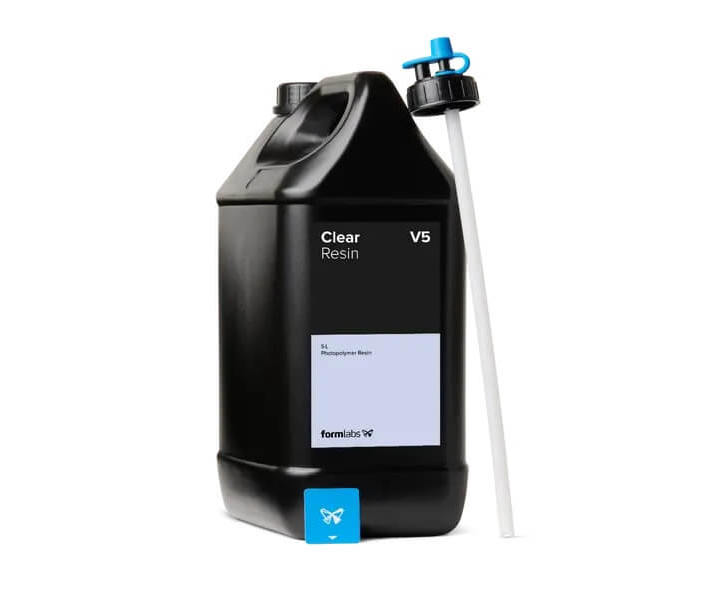

Formlabs Clear Resin V5 Form 4, 5L

Scale up your production of transparent parts with the high-volume Formlabs Clear Resin V5 Form 4, 5L container. Designed exclusively for the new Form 4 ecosystem, this next-generation General Purpose Resin delivers rigid, precise, and optically transparent parts at unprecedented speeds. Clear Resin V5 is engineered to polish to near-optical clarity, making it the ideal material for working with light, showcasing internal features, or creating see-through prototypes.
Please note: This 5L container requires a Resin Pump for operation. Items with this volume are made to order and may have a lead time of over 5 weeks.

Why Choose Clear Resin?

Clear Resin V5 is a rigid material that balances fast print speeds with high dimensional accuracy and exceptional surface quality. It is perfect for creating parts that require translucency or a view of internal mechanics.

Unrivaled Optical Clarity

Create parts that rival acrylic and glass. With simple post-processing and polishing, Clear Resin V5 achieves near-optical transparency. The V5 formulation offers a more neutral, clearer color compared to previous versions, ensuring your parts look professional and true to design.

High-Speed Production

Leverage the power of the Form 4 ecosystem. Clear Resin V5 is formulated to print up to three times faster than the previous V4 generation, allowing for rapid iteration and high-volume throughput without sacrificing detail or surface finish.

Smooth, Professional Surface

Prints come off the build platform with a smooth surface finish that minimizes layer lines. This makes it an excellent choice for presentation models, lighting components, and fluidic devices where surface quality is paramount.

Ideal Applications

Clear Resin V5 is a versatile material suitable for a wide range of engineering and design applications, including:

• Optics and Lighting: Lenses, light pipes, prisms, and LED housings.
• Fluidics: Microfluidic devices, manifolds, and millifluidic channels.
• Visual Prototyping: See-through models, enclosures, and housing to showcase internal components.

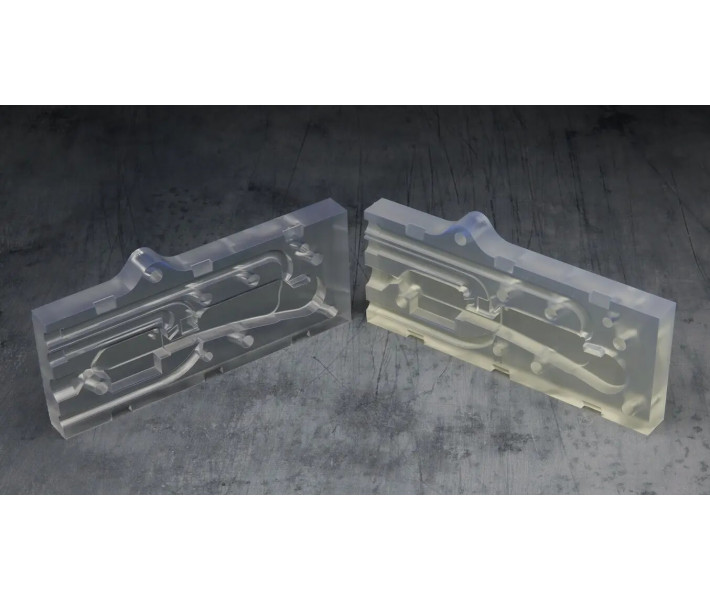

• Mold Making: Polycarbonate-like molds and dies.

Technical Specifications and Mechanical Properties

General Specifications:

• Technology: SLA
• Application: General Purpose
• Material Type: Stiff & Strong

Mechanical Properties:

The properties of Clear Resin V5 vary depending on the post-curing method used. Below is the data for two common workflows:

Option 1: Post-cured at Room Temperature for 5 Minutes

• Ultimate Tensile Strength: 51 MPa
• Tensile Modulus: 2575 MPa
• Elongation at Break: 10%
• Flexural Strength: 92 MPa
• Flexural Modulus: 2450 MPa
• Notched Izod: 29 J/m
• Heat Deflection Temperature @ 0.45 MPa: 56 °C

Option 2: Post-cured at 60 °C for 15 Minutes (Recommended)

• Ultimate Tensile Strength: 60 MPa
• Tensile Modulus: 2750 MPa
• Elongation at Break: 8%
• Flexural Strength: 105 MPa
• Flexural Modulus: 2700 MPa
• Notched Izod: 29 J/m
• Heat Deflection Temperature @ 0.45 MPa: 74 °C
