- Stock: Out of stock
- Product code: 0434
- Shipping Weight: 190.00kg

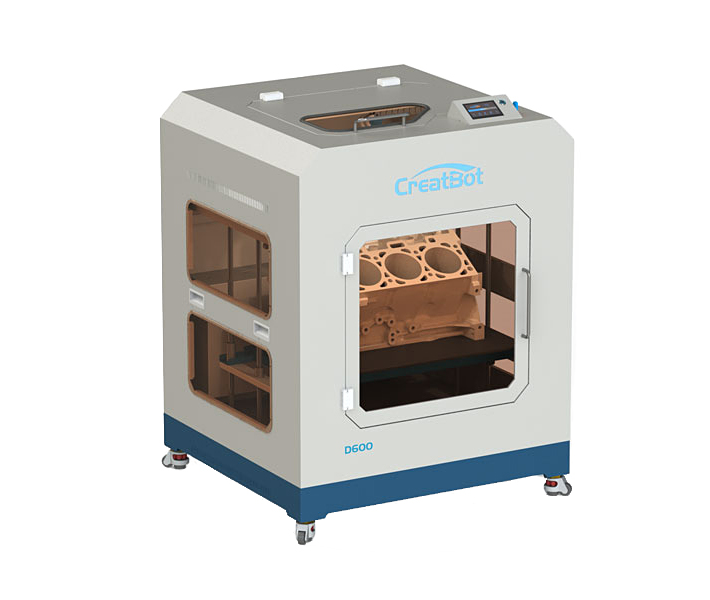

3D Printer CreatBot D600
The CreatBot D600 3D printer with a build volume of 600×600×600 mm, a heated bed, and a high nozzle temperature (up to 350 degrees Celsius) will allow you to print exceptional large colored objects.
Thanks to the use of 0.4 mm diameter nozzles and 3D plastic with a 3 mm filament diameter in the CreatBot D600, you can print objects with a smooth surface at higher speeds. It is perfectly suited for use in industry, education, and design.
Main advantages of the CreatBot D600 3D printer
- Use of 3 mm diameter plastic (1.75 mm optional).
- Availability of 2 nozzles.
- All-metal chassis.
- Large build volume 600 × 600 × 600 mm.
- Ultra-high extruder temperature (350 °C).
- Semi-transparent chamber.
- Easy cleaning of replaceable panels.
- Installed Feeder gear motors;
- Availability of a heated ceramic platform (100 °C).
- Availability of a metal platform tray.
- Direct plastic feeding.
3D Printer CreatBot D600

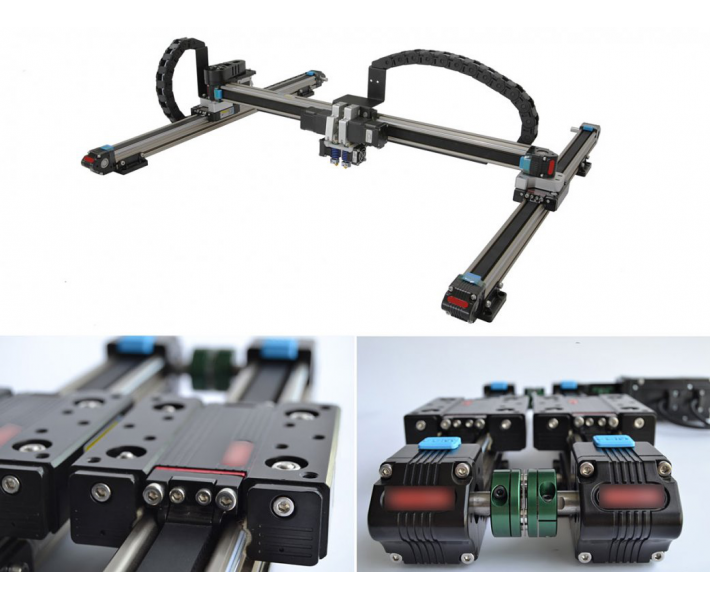

This printer has a huge build area of 600 × 600 × 600 mm and the highest print speed on the 3D printer market. This 3D printer is equipped with the **CoreXY** system, which ensures stability and print accuracy of 0.05 mm, meaning high-quality 3D printing. The CoreXY system allows printing at a speed of 120 mm/s.

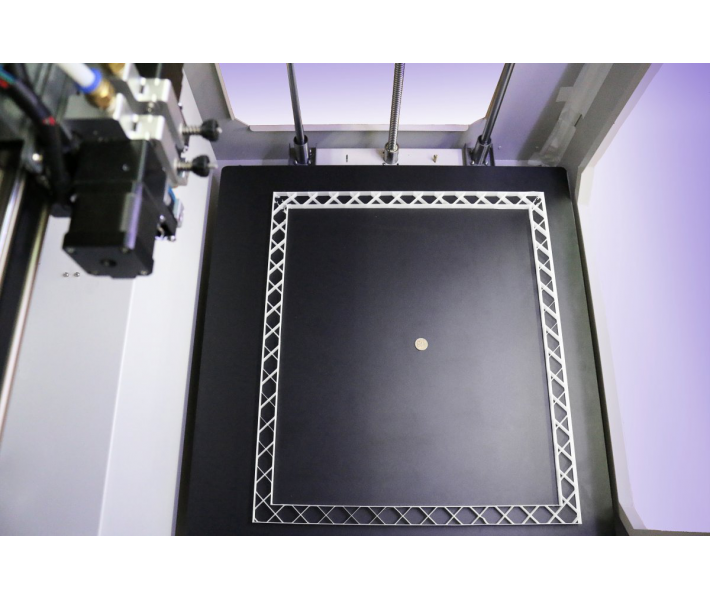

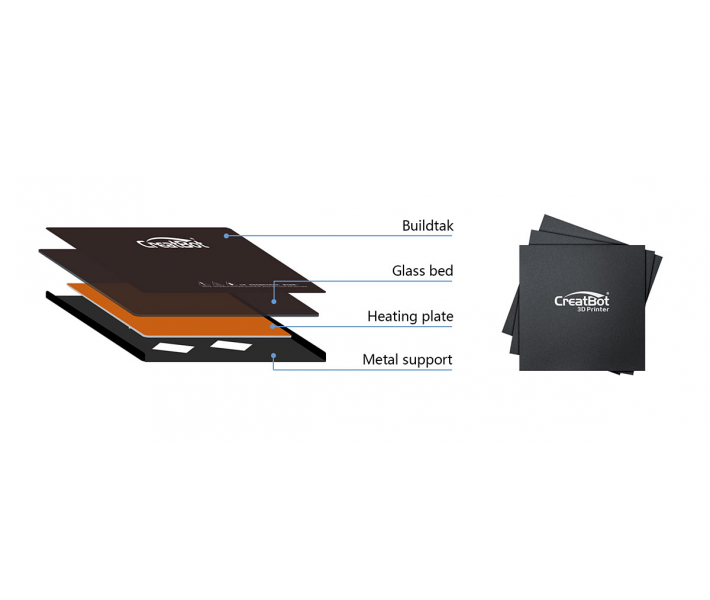

The CreatBot D600 3D printer is equipped with a heated platform made of tempered glass, as well as extruders that can print at a temperature of 400 degrees. These characteristics allow maximum diversification of the materials used for 3D printing. ABS, PLA, PVA, HIPS, wood, nylon, PETG, Rubber, Flexible, Copper, Bronze, Primalloy, and others are perfectly suitable.

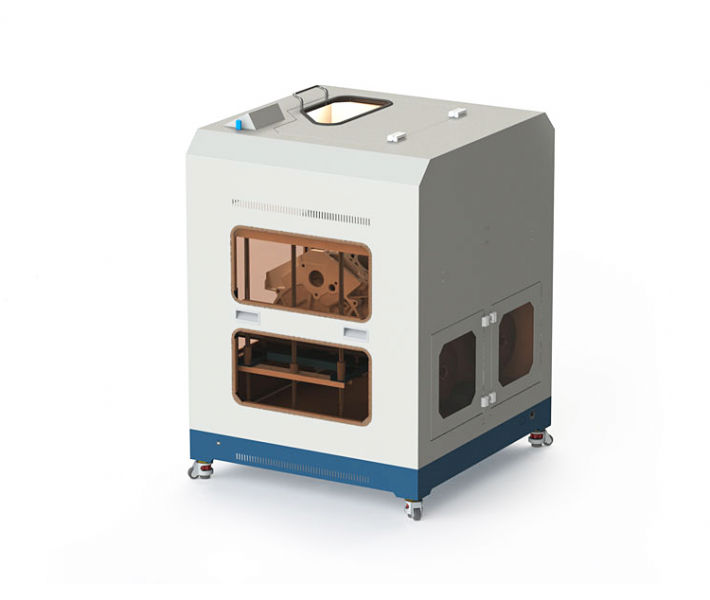

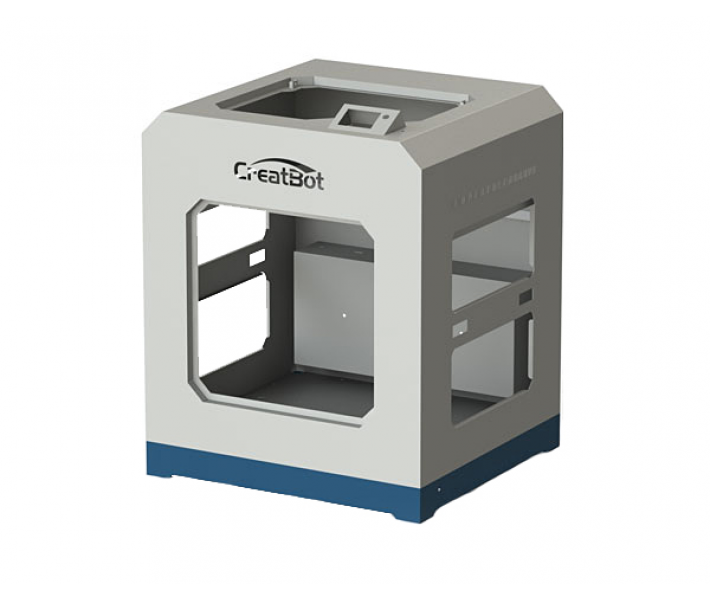

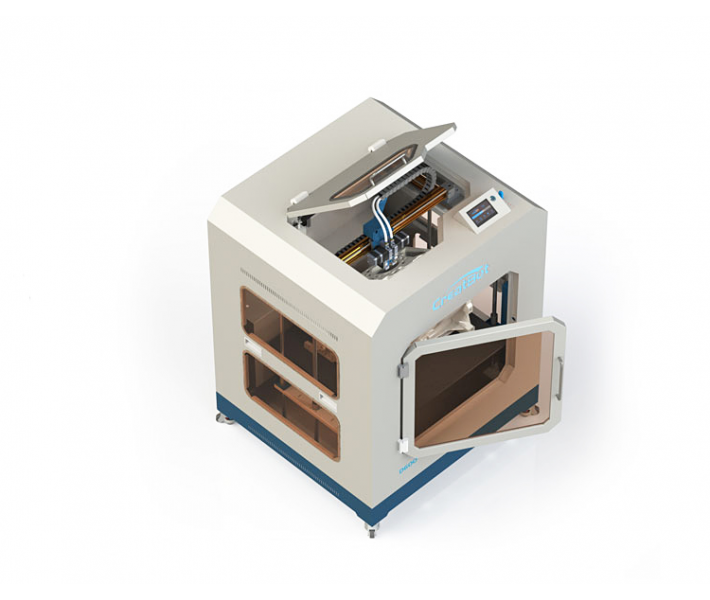

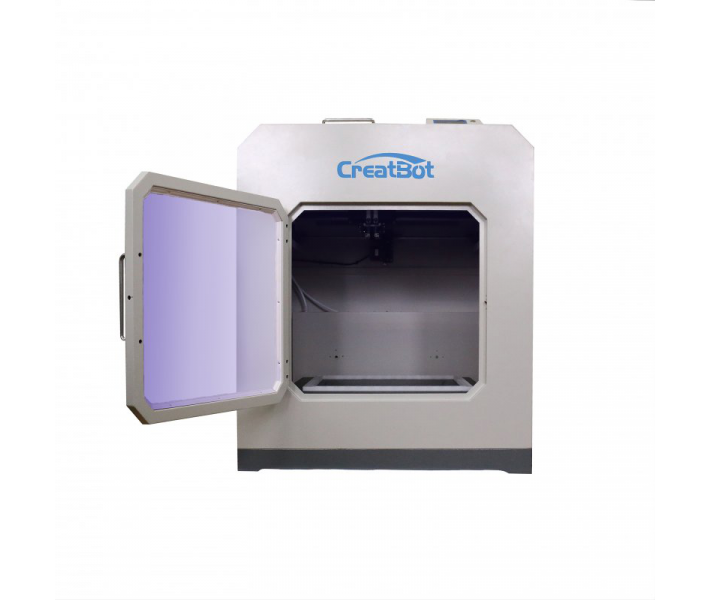

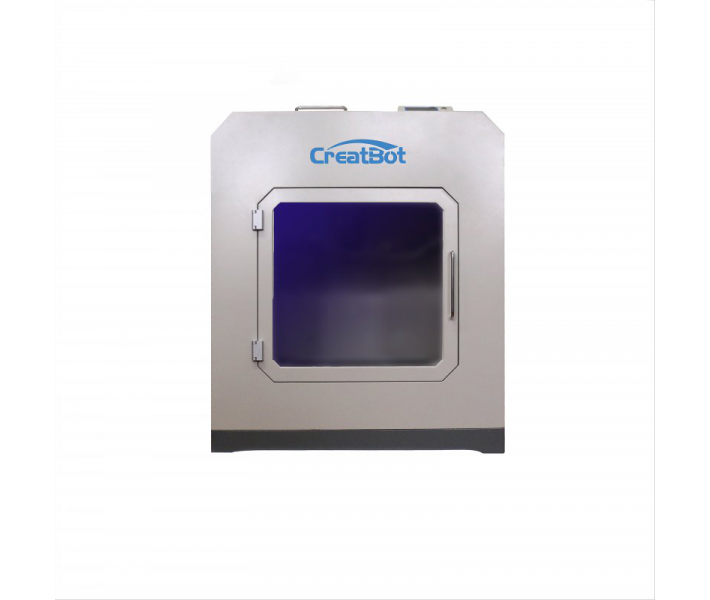

The 3D printer has a durable metal casing. This allows printing at high temperatures and high speeds. The semi-enclosed chamber allows monitoring the printing process.

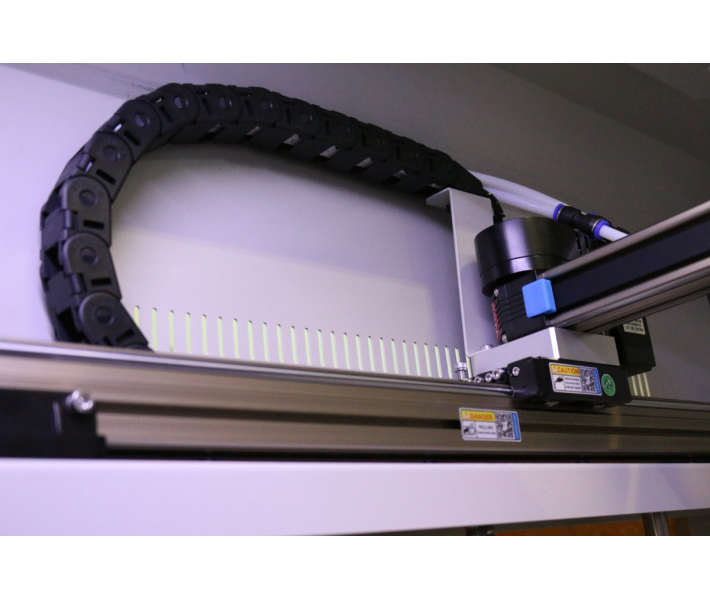

Thanks to the stepper motors being located at the rear of the printer, the print head has a lighter weight and ensures high speed.
In addition to the CreatBot D600 3D printer being able to print at high speed and large objects, it is also capable of printing objects with a high level of detail and high resolution.

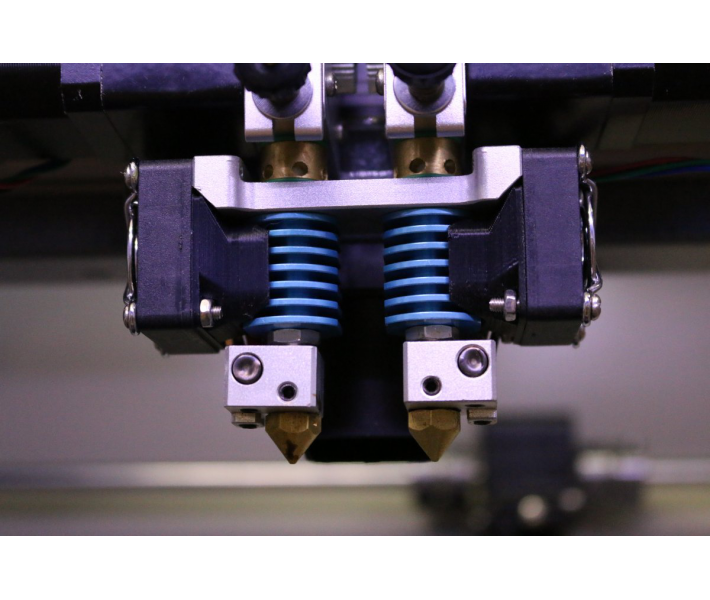

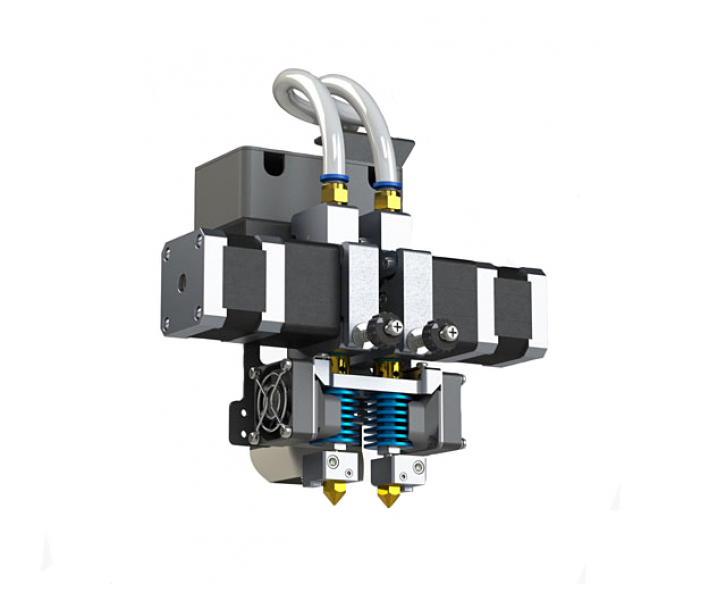

The extruders have replaceable nozzles, available in 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, and 1.0mm for high detail and high-speed printing. You can print large prototypes with high strength at high speeds, or small fine objects with high detail. The large CreatBot D600 3D printer can print with large nozzle sizes up to 1.2 mm in diameter. This allows printing thicker and wider layers for a stronger bond between layers. As a result, the object printing time is significantly reduced.
The CreatBot D600 3D printer is equipped with an intelligent sensor that recognizes the presence of filament. If the filament runs out or breaks, the printer pauses and waits for you to insert the filament, and then resumes printing at the point where it was interrupted.
Modular power management supports automatic printer shutdown after printing is complete.

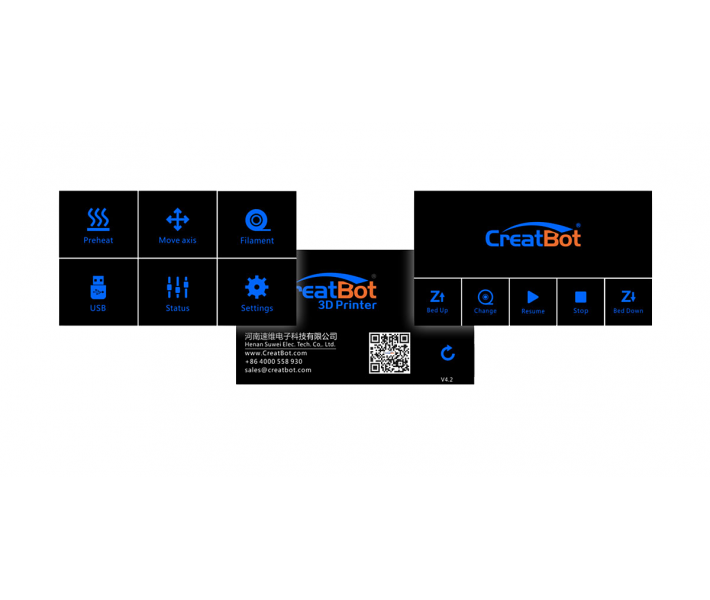

The multifunctional display shows information about the status of the 3D printer and allows you to make adjustments to the printer's operation. You can easily change the print temperature, print speed, flow rate, and fan speed, pause, suspend, or resume printing.
Files can be stored on the SD card (included) and printed directly from the printer interface without the need to connect to a personal computer. The controls allow you to make adjustments while you are printing.
Technical Specifications
| 3D Printing Type | FDM |
| Build Area | 600 × 600 × 600 mm |
| Number of Extruders | 2 |
| Layer Height | 50 microns |
| Print Accuracy | 50 microns |
| Plastic Diameter | 3 mm (1.75 mm optional) |
| Plastic Compatibility | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, etc. |
| Nozzle Diameter | 0.4 mm (0.2, 0.3, 0.5, 0.6, 0.8, 1.0 mm available) |
| File Type for 3D Printing | GCO, GCODE |
| Ambient Temperature | 15-32°C |
| Maximum Nozzle Temperature | 350 °C |
| Maximum Platform Temperature | 100 °C |
| Filament Drying Temperature | 45 °C |
| Best Print Speed | 45 mm/s |
| Maximum Print Speed | 120 mm/s |
| Maximum Travel Speed | 200 mm/s |
| Construction | Powder-coated steel, aluminum for motion components, POM |
| Platform | Microcrystalline ceramic panel |
| Platform Calibration | Factory setting, manual adjustment |
| Stepper Motors | Step angle 1.8°, microstep 1/16 |
| XY Positioning Accuracy | 5.08 microns |
| Z Positioning Accuracy | 1.25 microns |
| Power Supply | 100 – 240 V, 50 – 60 Hz |
| Maximum Power | 1000 W |
| LCD Display | 4.3″ Touch screen with multilingual interface |
| Processor | ATmega 2560 |
| Data Carrier | SD Card |
| Connection | USB |
| Software | CreatWare in different languages |
| Supported File Types | STL, OBJ, AMF |
| Operating System | Windows (7,8,10), Mac OS X |
| Body Material | Metal |
| Dimensions | 915 × 845 × 1085 mm |
| Weight | 125 kg |
| Dimensions in Packaging | 1000 × 1030 × 1360 mm |
| Weight in Packaging | 190 kg |
| Country of Manufacture | China |
| Warranty | 1 year |
Package Contents:
- Power cable
- USB cable
- Tape for 3D printing
- SD card with software
- Spare parts
- Tool kit for mechanics
- Adapter for SD card
- User manual in English*
* The manufacturer reserves the right to change equipment specifications without notice.
