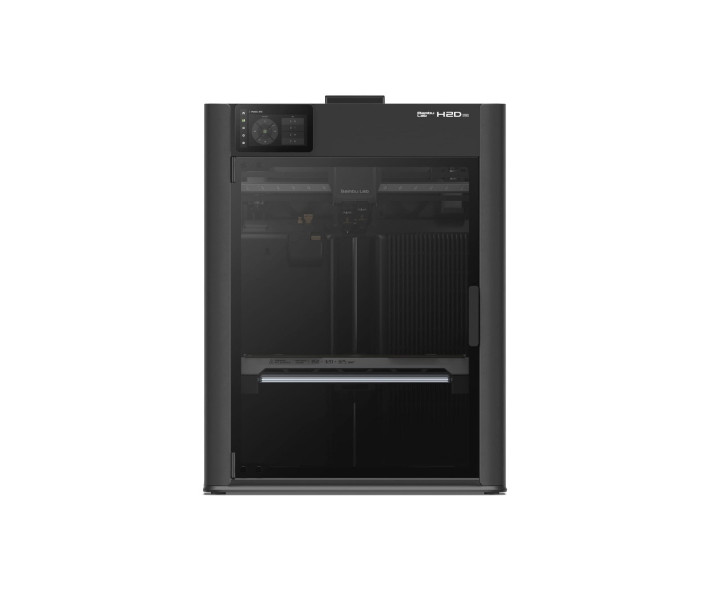

Bambu Lab H2D Pro – High-temperature 3D Printer with 2 Nozzles
The Bambu Lab H2D Pro 3D printer is a new, advanced model for precise printing with various types of plastic. It stands out with a two-nozzle system. This technology increases productivity and offers new possibilities. Two nozzles allow you to print with different materials simultaneously. For example, you can combine flexible and rigid filaments. This enables the creation of products with unique properties.
For printing supports, you can use less expensive plastic. This provides significant savings, especially if the 3D printer is used for industrial purposes. One nozzle is for the main material. The second is for printing supports. This ensures high-quality printing and minimizes post-processing, as the supports are easily separated. The surface of the product remains perfectly smooth.
The Bambu Lab H2D Pro color 3D printer is equipped with smart algorithms. They optimize thread usage. This saves time and material. The use of two nozzles reduces the number of cleaning cycles, which significantly speeds up multi-color printing.
Main technical specifications of Bambu Lab H2D Pro
Print volume:
- With one nozzle: 325 × 320 × 325 mm
- With two nozzles: 300 × 320 × 325 mm (active area), total volume: 350 × 320 × 325 mm³
Dimensions:
- Body: 492 × 514 × 626 mm
- Weight: 31 kg
Toolhead:
- Hot end: all-metal
- Nozzle: tungsten carbide (HRA 90)
- Usage of 0.4 mm nozzles (0.2 / 0.6 / 0.8 option)
- Maximum nozzle temperature: 350 °C
Speed and performance:
- Max. travel speed: up to 1000 mm/s
- Acceleration: up to 20,000 mm/s²
- Max. melt flow: 40 mm³/s (ABS setting)
Printing comfort:
- Bed heating: up to 120 °C, working surface – flexible textured PEI (optional – smooth PEI)
- Active heating outside the print area: up to 65 °C
Control, interfaces, security:
- Display: 5″ touchscreen, 720 × 1280 resolution
- Data storage: built-in eMMC (8 GB) + USB slot
Processors:
- Motion: dual-core Cortex-M4 + single-core Cortex-M7
- Applications: quad-core A7 + NPU 2 TOPS
Connections:
- Wi-Fi (WPA2-Enterprise: EAP-PEAP/EAP-TLS/EAP-TTLS)
- Ethernet (RJ45, 100 Mbps)
- Physical network emergency switch (“killswitch”)
- Removable network module and support for 802.1X/A.7x
Safety and filtration functions:
- Emergency button
- Filtration: G3 pre-filter, HEPA H12, activated carbon for VOC and particle removal
Software:
- Slicer: Bambu Studio; compatibility with SuperSlicer, PrusaSlicer, Cura, etc. (via G-code)
Power supply:
- Input voltage: 100–120 VAC or 200–240 VAC, 50/60 Hz
- Max. power: 1320 W @110 V, 2200 W @220 V
- Average power: about 1050 W in both configurations
Additional features of H2D Pro:
- Supported materials: PLA, PETG, TPU, PVA, ABS, ASA, PC, Nylon/PA, PET, PPS, PPA, carbon and glass fiber composites
- Onboard camera: 1080p for real-time print viewing
- Calibration: Vision Encoder – provides ultra-precise positioning (~50 µm)
Engineering printing with Bambu Lab H2D Pro
The Bambu Lab H2D Pro 3D printer with a high-temperature nozzle can work with engineering plastics, as the nozzle heats up to 350 °C. Available materials include PPA-CF, PPS, and PPS-CF. High temperature improves layer adhesion, allowing for the printing of stronger and more reliable parts.
The printer has an active chamber heating system. The temperature inside can reach 65 °C. This system controls temperature and air circulation. It reduces the risk of warping. It also improves layer adhesion. This is especially important for printing with materials prone to shrinkage.
The fan built into the print head improves cooling. It effectively lowers the extruder temperature. This prevents clogging. The system maintains stable printer operation.
Industrial-grade reliability and accuracy
The printer's nozzle is made of tungsten carbide. Its hardness on the HRA scale is 90. This makes it very wear-resistant. Such a nozzle will last 50% longer than hardened steel nozzles. It is ideal for printing with abrasive materials.
The printer is equipped with a video encoder. It provides ultra-precise motion calibration. The resolution is 50 µm across the entire print area. This accuracy is the foundation for creating high-quality products.
3D printing safety and connectivity
The Bambu Lab H2D Pro has a reliable air filtration system. It includes a G3 pre-filter, HEPA H12 filter, and an activated carbon filter. This system effectively captures particles and volatile organic compounds. This ensures safe printing in enclosed spaces.
The printer offers several connection options. It supports a stable Ethernet connection. It can also connect via Wi-Fi. The printer supports WPA2-Enterprise authentication. This is important for working in corporate networks with high security requirements.
Bambu Lab offers professional support. Companies can develop customized solutions for managing a farm of printers. This makes the H2D Pro ideal for business.
3D printer for engineers, builders, students, and teachers
The Bambu Lab H2D Pro 3D printer is aimed at professionals. It is suitable for engineers and designers and will be useful in production. The printer can be used in educational and research centers. It is ideal for prototyping and small-batch production. The Bambu Lab H2D Pro 3D printer is suitable for creating complex parts. It can also be used to produce functional prototypes and final products.
Package contents of the Bambu Lab H2D Pro 3D printer
- Bambu Lab H2D Pro 3D printer.
- Bambu Lab AMS 2 Pro.
- Bambu Lab AMS HT.
- Video encoder plate.
- Emergency stop button.
- Textured PEI build plate.
You can choose a high-temperature 3D printer for engineering plastics from other brands on the "FDM 3D printers" page. We have a large assortment of 3D printers for different tasks; if you're lost, call us! We'll consult you and help you choose a printer for your specific goals. Free training, delivery throughout Ukraine.
