A new level of 3D printing success

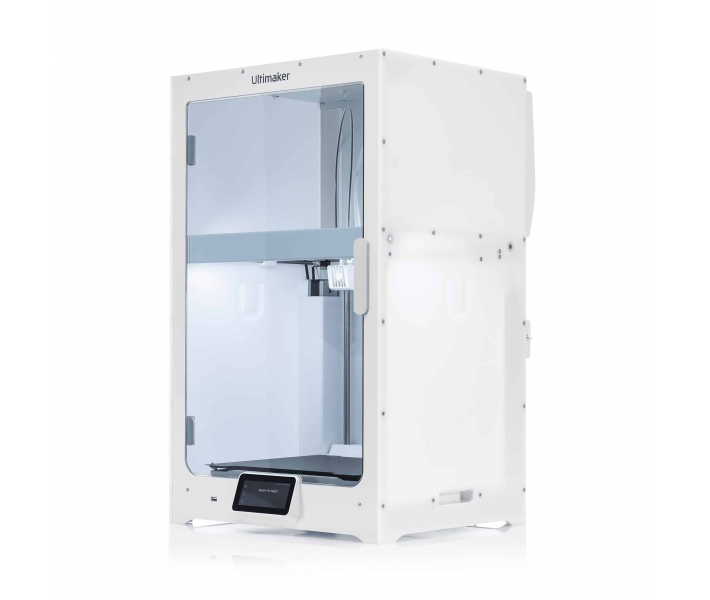

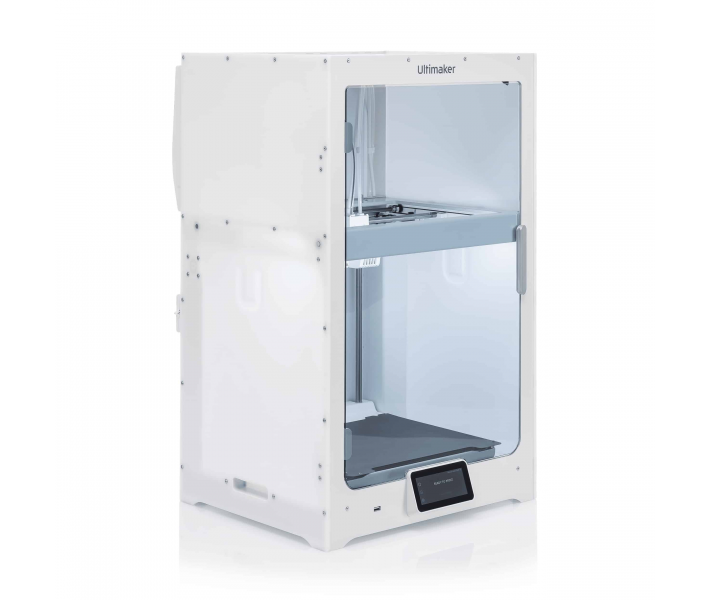

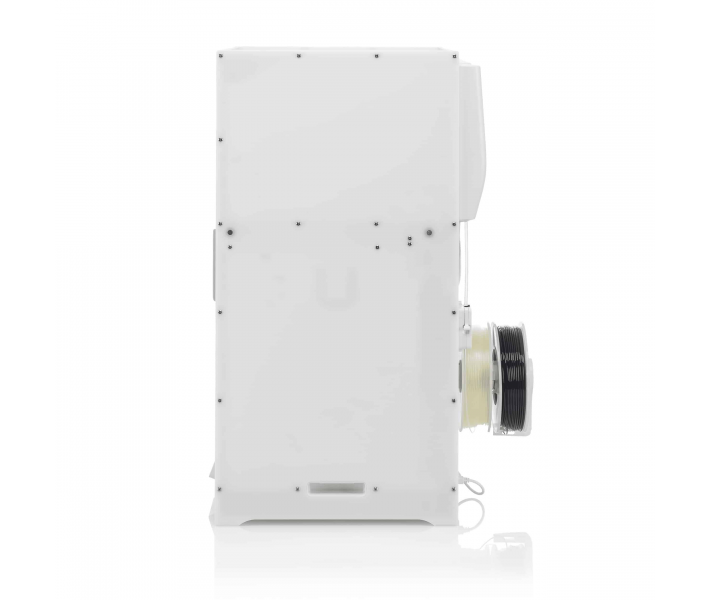

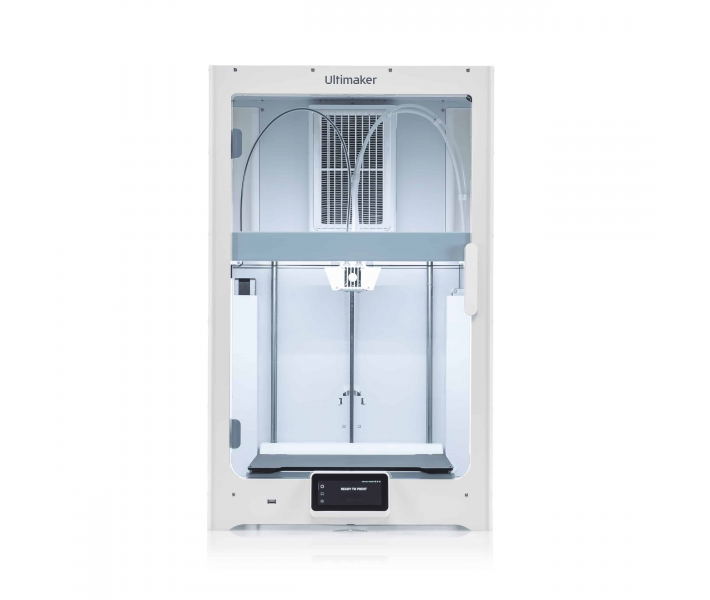

We are pleased to announce the new generation UltiMaker S7 3D printer. UltiMaker claims its new printer as an improved UltiMaker S5.
Taking all the best features from its predecessor, the UltiMaker S7 offers even more features and flexibility to expand your idea of user-friendly FDM printing. The new S7 is equipped with the latest technologies that make 3D printing high-quality parts easier than ever.
Convenient 3D printing right out of the box
Key features of the UltiMaker S7 3D printer:
- Printing volume 330*240*300 mm
- Easy setup and monitoring
- Flexible steel build plate with PEI coating
Fast removal of printed parts without any incident. Use no additional adhesives and easily remove models from the build surface thanks to the flexibility of the PEI-coated build plate. Its patented design utilizes 25 magnets and 4 alignment pins for perfect alignment. This reduces maintenance time for the S7 and increases your productivity.
- Built-in Air Manager – environmental control
Independent testing has confirmed the removal of up to 95% of ultrafine particles from every print. The fully enclosed print chamber improves print quality by creating a controlled environment inside.
- Advanced active alignment during the printing process
A new inductive printhead sensor senses the build plate with less noise and greater accuracy. And automatic tilt compensation eliminates the need to calibrate the bed with a screw. Together, they allow you to start printing and get on with the rest of your day – confident that the printer is perfectly executing the first layers of your model.
- Access the UltiMaker platform
UltiMaker Cura is a print prepress software. UltiMaker Digital Factory – printer management software. UltiMaker Essentials – enterprise-grade online software tools.
- Easily print from more than 280 available media at the touch of a button
Unlimited 3D printing potential with more than 280 printable materials available, tested for thousands of hours by manufacturers and users in real-world applications.
Additional features in UltiMaker S7
- Cura integration
Get access to UltiMaker Cura features that speed up your workflow and improve print success, such as intent profiles, easy remote printing, and more.
- File backward compatibility
If you have an UltiMaker S5, your entire digital library of S5 print files will work seamlessly on the S7 – no re-cutting required.
- Anti-leakage sensor
Redesigned printhead detects potential leaks and melted plastic build-up earlier.
Specifications
| Printing Technology | FDM |
| Build Field (mm) | 330*240*300 |
| Diameter Of Plastic (mm) | 2,85 |
| Maximum Nozzle Temperature (°C) | 280 |
| Number Of Extruders | 2 |
| Chamber Type | Closed |
| Heating The Chamber | No |
| Plastic Drying | Optional |
| Autocalibration | Yes |
| Feeder Type | Bowden |
| Layer Height (micron) | 0.25 mm nozzle: 150 – 60 micron / 0.4 mm nozzle: 200 – 20 micron / 0.6 mm nozzle: 300 – 20 micron / 0.8 mm nozzle: 600 – 20 micron |
| Nozzle Diameter (mm) | 0,25 / 0,4 / 0,6 / 0,8 |
| Nozzle Warm-Up Time (min) | 2 |
| Positioning Accuracy (µm) | XY: 6.9; Z: 2.5 |
| Platform Heating | Yes |
| Maximum Platform Temperature (°C) | 140 |
| Platform Warm-Up Time (min) | Up to 5 (from 20 to 60 °C) |
| Platform Material | PEI-coated flexible steel build plate |
| Supported Materials | PLA, Tough PLA, Nylon, ABS, CPE, CPE+, PC, TPU95A, PP, PVA, Breakaway and other 280+ materials |
| Material Recognition | Automatic – NFC scanner |
| Running Noise, dB | Up to 51 |
| Air Filter | Replaceable HEPA filter |
| Control | 4.7″ color touchscreen |
| Video Camera | Yes |
| Features | • Dual-geared feeder, reinforced for composite materials • Double extruder with a unique nozzle lifting system and swappable print cores • Active leveling system, automatic leveling • Integrated Air Manager • Filament Runout Sensor • Filament Clogging Sensor |
| Supported File Types | STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG, G, GCODE, GCODE.gz, UFP |
| Software | UltiMaker Cura, UltiMaker Digital Factory, UltiMaker Essentials. Plugin integration: SolidWorks, Siemens NX, Autodesk Inventor |
| Connectivity | Wi-Fi (2.4 and 5 GHz), Ethernet, USB |
| Power Requirements | 100-240 VAC, 50-60 Hz |
| Power Output | 500W |
| System Requirements | Mac OS, Windows, Linux |
| Warranty Period (months) | 12 |
| Certifications | CE, FCC, VPAT, RoHS, REACH, CB, BIS, KC, PSE, RCM, SRRC, MIC, NCC, Safe unattended professional use. ISO/IEC 27001 certified. |
| Weight Netto (kg) | 29,1 |
| Dimensions Assembled (mm) | 495×585×800 |
| Operating Temperature Range (°C) | 15 – 32 |
| Operating Humidity Range (%) | Up to 70 |
| Storage Temperature (°C) | 0 – 32 |
