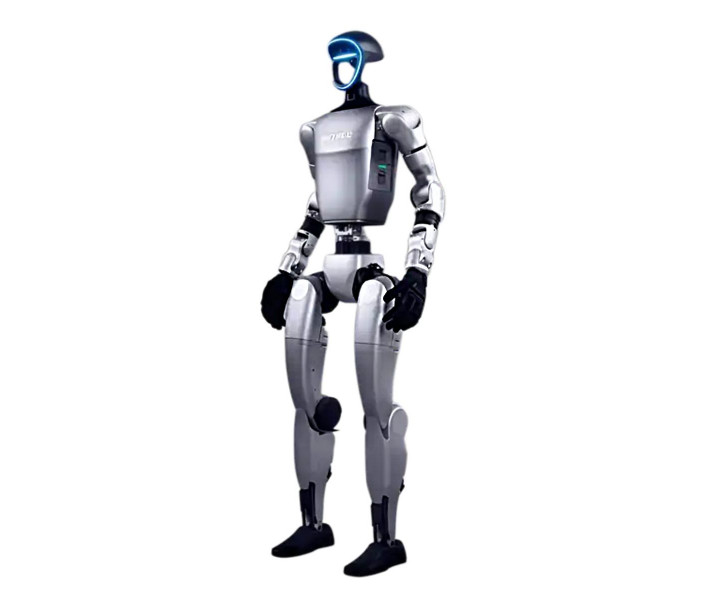

Unitree G1 Edu Flagship B-U4: Humanoid Robot for Research and Education
Unitree G1 Edu Flagship B-U4 is a complex engineering ecosystem created for those who are not afraid to look into tomorrow. If the basic version seems like a toy to you, then the Flagship B-U4 is a real humanoid robot for programming. Its capabilities and computing power are mind-blowing. It is designed for applied AI tasks, where every movement must be precise to the millimeter, and the response to external stimuli must be instantaneous. Let's get to know the device in digital terms in more detail.
Anatomy and Mechanics: 43 Degrees of Freedom

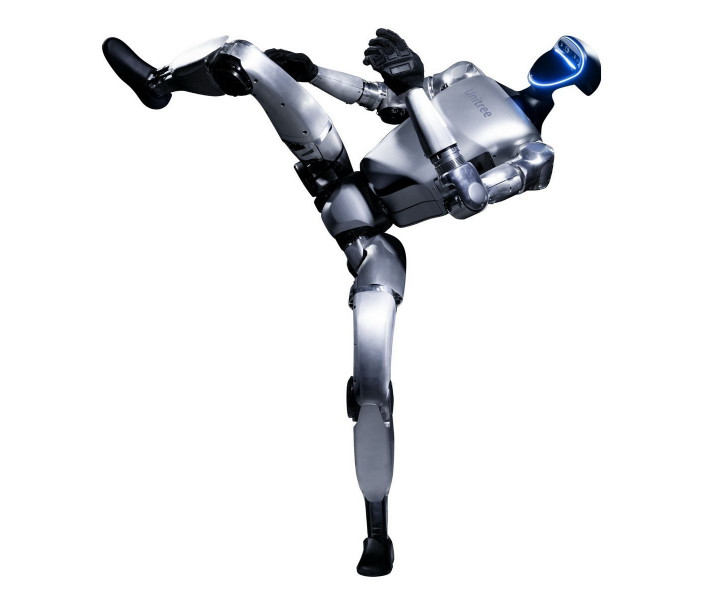

The first thing that catches the eye is the incredible mobility. While competitors are trying to teach their robots just to maintain balance, the G1 Edu Flagship B-U4 demonstrates acrobatic wonders thanks to 43 degrees of freedom. Each joint here is a work of art.

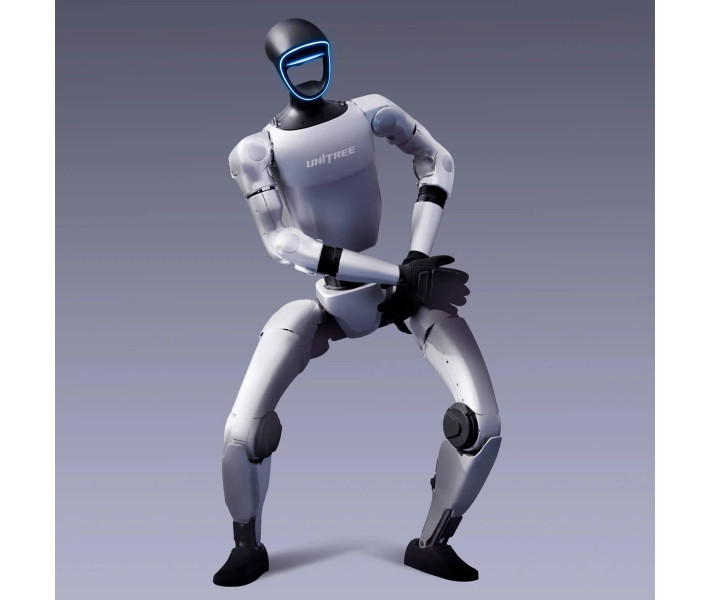

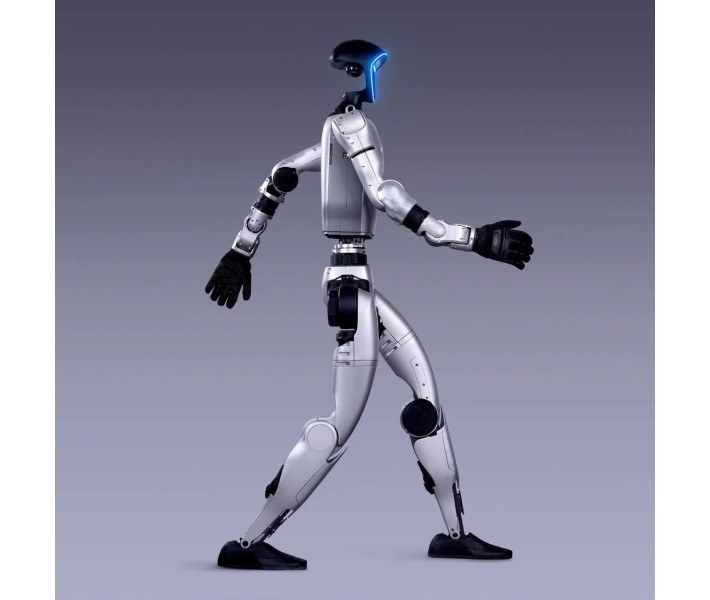

The robot's legs have 6 degrees of freedom per limb, allowing it to imitate human walking with astonishing precision. The knee joints are equipped with powerful PMSM motors with a torque of up to 120 N·m, providing a burst and stability even during complex maneuvers. The knee bending angles reach 165°, and the hip joint has a wide range of rotation. This design allows the robot not only to walk but also to perform deep squats, overcome obstacles, and regain balance under external impact.

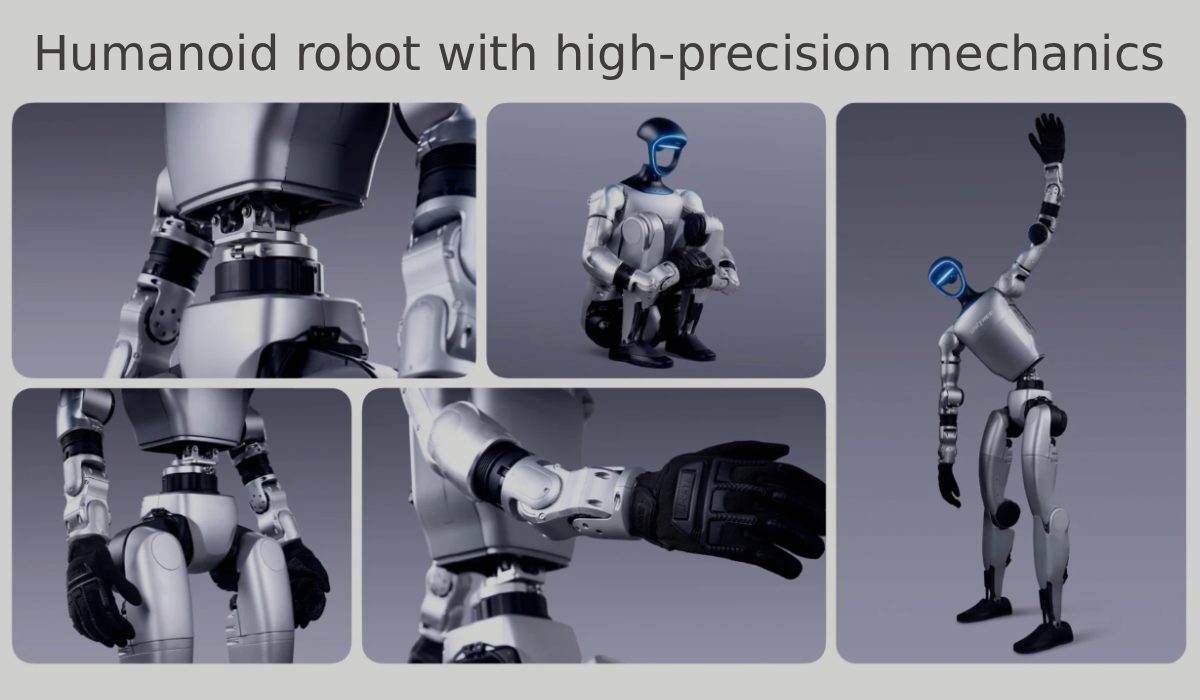

Dexterous Hands: Tactile Sensation at Fingertips
The main feature of the Flagship B-U4 configuration is its hands. Unlike the junior versions, it is equipped with intelligent three-fingered manipulators with tactile feedback. Imagine: each hand has 33 tactile sensors. The robot not only grabs objects but feels their texture, density, and weight.
This opens doors to the world of delicate manipulations. Assembling a complex part, holding a fragile test tube, or interacting with household items: for the B-U4, this is an achievable task. Seven degrees of freedom per hand, combined with high-precision sensors, make this humanoid an ideal tool for practicing fine motor skills algorithms.
Intelligence Based on NVIDIA Jetson Orin
If mechanics is the body, then NVIDIA Jetson Orin is the brain of the robot. The computing power of 100 TOPS (trillions of operations per second) allows the G1 Edu Flagship B-U4 to process data arrays in real-time. This is critically important for autonomous navigation: 3D LiDAR and a depth camera create a detailed map of the space, allowing the robot to avoid obstacles. The Unitree G1 robotic platform with AI navigates the space better than some humans.
Computer Vision (CV), face, gesture, and object recognition occur almost without delay. The platform supports working with ROS and SDK, allowing researchers to implement their own machine learning and neural network learning algorithms. The robot can "hear" thanks to an array of four microphones and "speak" through a built-in 5W speaker. Support for Wi-Fi 6 and Bluetooth 5.2 ensures stable communication in any conditions.
Efficiency of Use and Application Areas
Unitree G1 Edu Flagship B-U4 is not a serial home assistant, but primarily a powerful platform for R&D centers and universities. Where will a robot bring the most benefit?
- Scientific laboratories: studying biomechanics and human-machine interaction.
- Education: training specialists in robotics and artificial intelligence on real hardware.
- Industry: testing control systems and adaptive reactions in aggressive or non-standard environments.
- Software development: creating and debugging software for the next generation of service robots.
User Benefits
By investing in the Flagship B-U4 model, you get a device in maximum configuration. Unlike the Basic or A-U3 versions, there is no need to buy additional sensors or struggle with a lack of processor power. The robot comes with a 9000 mAh battery, providing up to 2 hours of autonomous operation. This is quite enough for intensive tests or demonstrations.

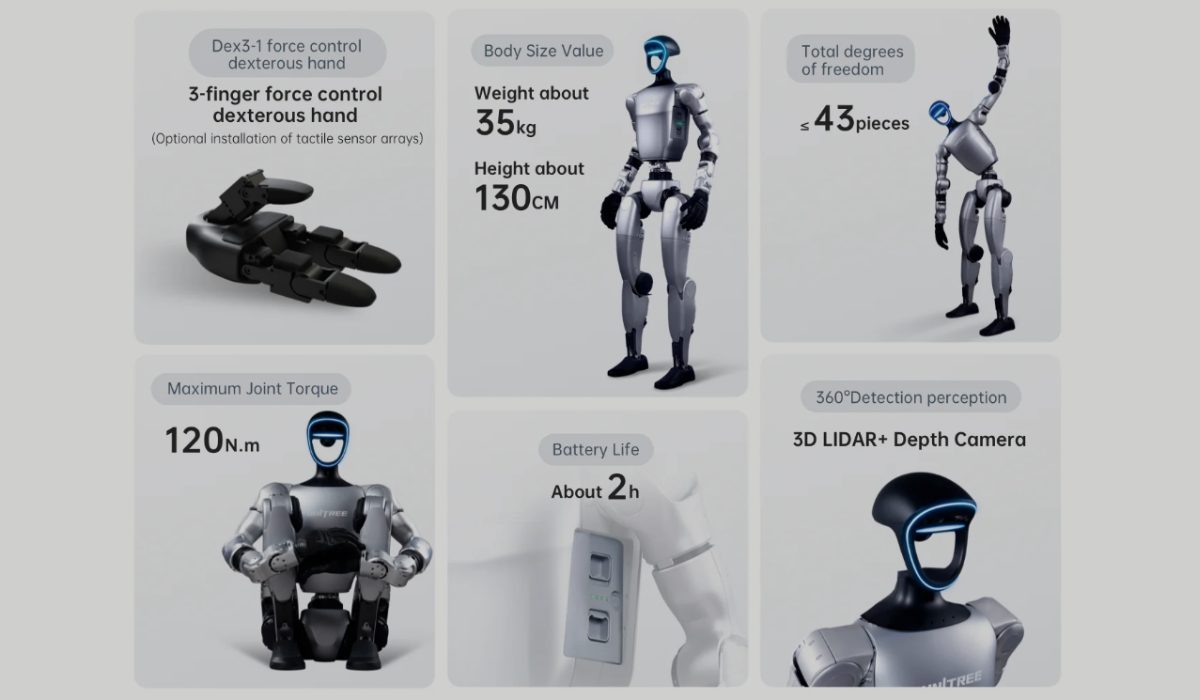

Specifications of Unitree G1 Edu Flagship*
| Model | Unitree G1 Edu Flagship B-U4 |
| Robot Type | Humanoid Robot (Educational/Research Version) |
| Purpose | R&D, Artificial Intelligence, Robotics, Education, Laboratories |
| Height | ≈ 1270 mm |
| Weight | ≈ 35 kg |
| Number of Degrees of Freedom (DoF) | ≈ 34–41 (depending on B-U4 configuration) |
| Actuators | High-precision Unitree servos with high torque |
| Maximum Movement Speed | Up to 2 m/s |
| Balancing and Control | Dynamic stabilization, real-time balancing algorithms |
| Computing Platform | Built-in high-performance computer (NVIDIA Jetson, depending on configuration) |
| AI Support | Yes, support for computer vision and autonomous algorithms |
| Cameras | RGB Camera + Depth (3D) Camera |
| Sensors | IMU, joint encoders, position sensors, additional modules possible |
| Communication | Wi-Fi, Ethernet |
| Battery | Replaceable lithium-ion battery |
| Autonomous Operation Time | Up to 2 hours (depends on operating mode) |
| Software Environment | Unitree SDK, support for ROS / ROS2 |
| Control | Via PC, API, SDK, remote access |
| Additional Features | Support for sensor expansion, manipulator integration, research modules |
| Country of Development | China (Unitree Robotics) |
| *Производитель может незначительно изменять характеристики устройства без предварительного уведомления. |
The possibility of over-the-air updates (OTA) ensures that your robot will become smarter with each update from the manufacturer. It's a fair deal: you get advanced hardware and a flexible software environment that does not limit your engineering creativity. Want such a robot but still have questions? Call us, and our experts will select a humanoid for your specific tasks!
