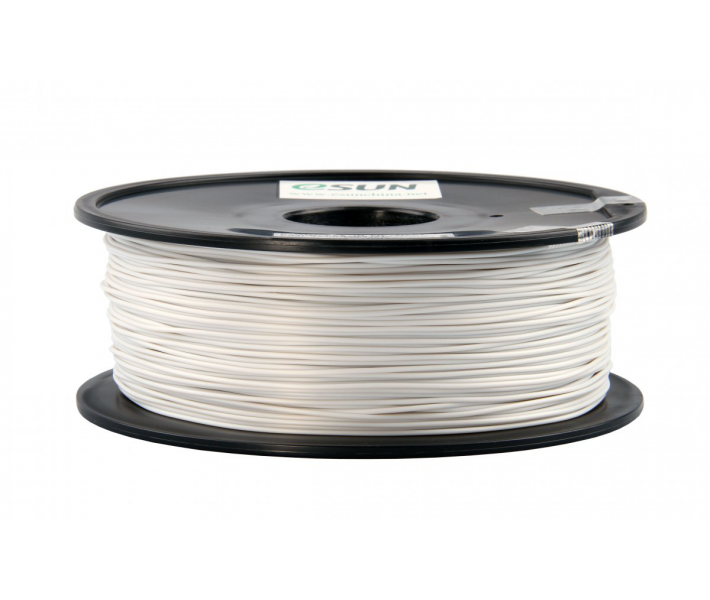

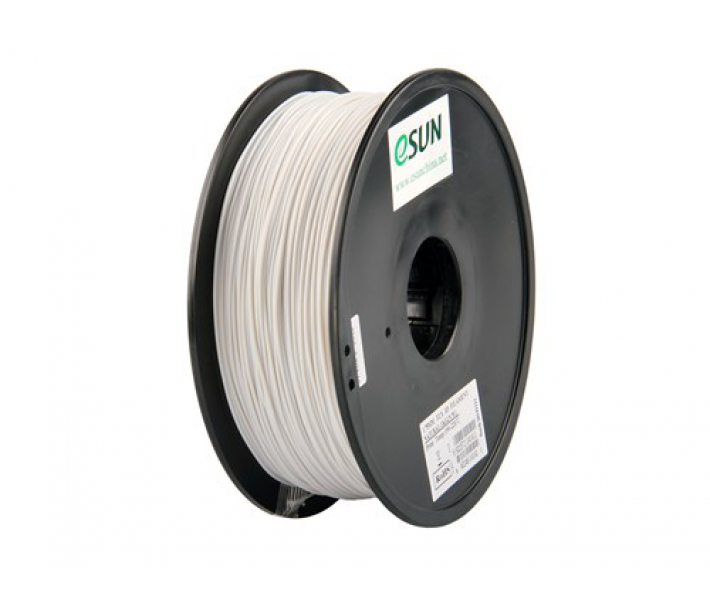

Flexible 3D Plastic eSUN eLastic
3D plastic eSUN eLastic belongs to the category of thermoplastic elastomers, or thermoplastic elastics. It is a rubber-based material that has high strength and elasticity. Among the disadvantages are low thermal resistance, poor resistance to chemical exposure, and low shape retention after load impact. In the industry, this material is used for rubber coating of surfaces, cable coatings, manufacturing of automotive components, and coating of instrument panels. In 3D printing, 3D plastic eSUN eLastan can be used for manufacturing various membranes and seals, sports equipment, toys, flexible decorative elements, and more. For example, elastic plastic is perfect for printing a designer phone case.
However, when printing with flexible materials, certain rules should be followed to help use 3D plastic eSUN eLastan on any models of 3D printers without problems. It is recommended to print at low speed, and in some cases, it may be necessary to upgrade the extruder or install a last-generation pressure mechanism.
Technical Specifications
| Color | White |
| Spool Weight | 1 kg |
| Available Filament Diameter | 1.75 mm and 3 mm |
| Recommended Extruder Heating Temperature | 210 – 230 ˚C |
| Recommended Plastic Feed Speed | 15 – 30 mm/s |
| Print Accuracy | With diameter 1.75 mm: 1.7 – 1.8 mm With diameter 3 mm: 2.9 – 3 mm |
| Shore Hardness on Scale A | 85 |
| Density | 1300 kg/m3 |
| Elongation | Up to 500% |
| Tensile Strength | 30 MPa |
| Tensile Yield Strength | ˃35 MPa |
| Manufacturer | China |
