- Stock: In Stock
- Product code: 00-00000290

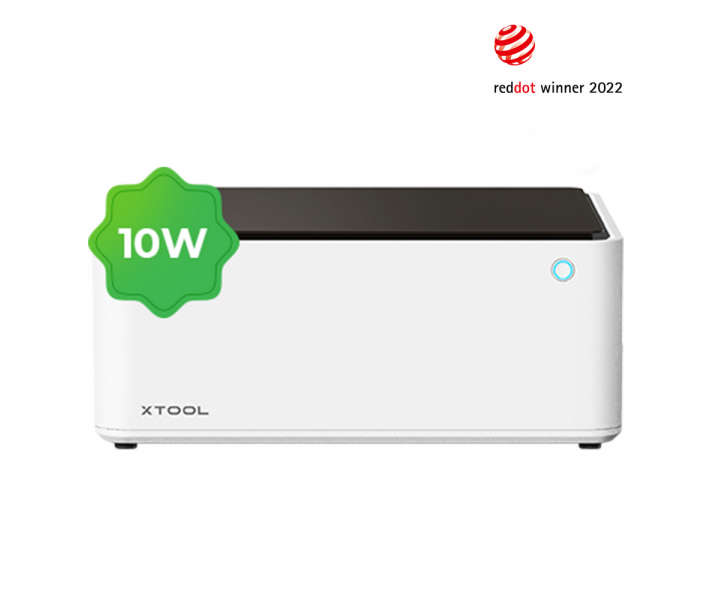

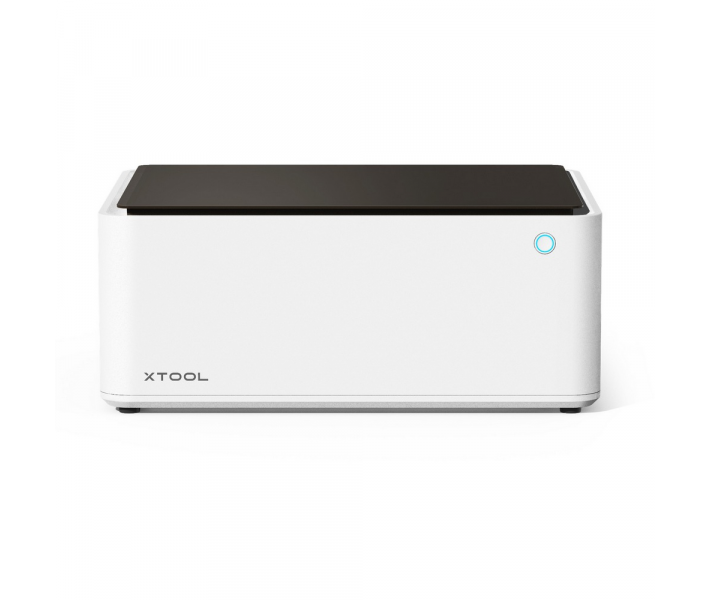

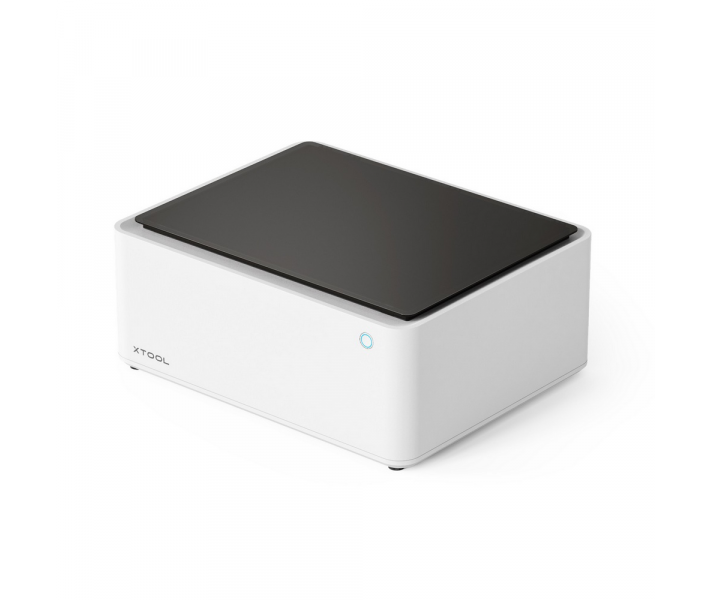

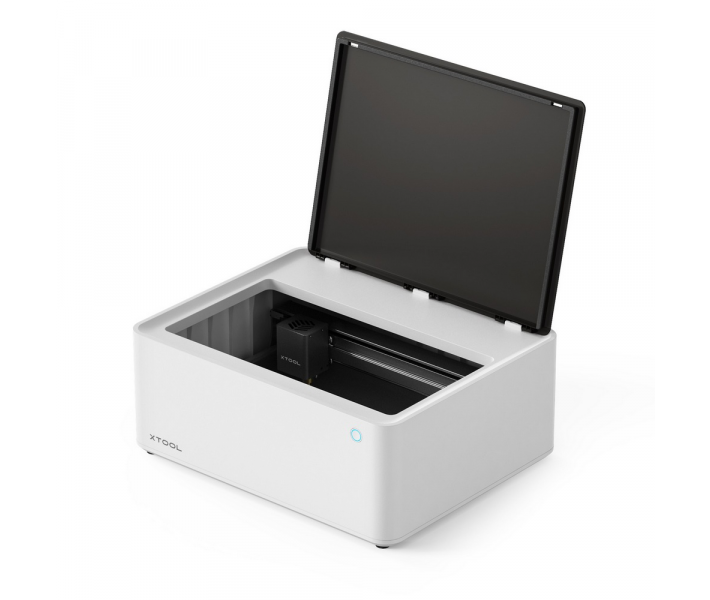

Hybrid Laser Blade Cutter xTool M1 10W
The desktop hybrid laser blade cutter xTool M1 10W for everyone is an innovative, powerful and easy-to-use device at an affordable price.
The unique device xTool M1 for DIY enthusiasts is a laser cutter, laser engraver and knife cutter in one desktop device. Easily and safely implement any of your ideas, whether you are a craftsman, a fan, a home user, an amateur or a professional.
The first cutter with a combination of diode laser and blade
xTool M1 10W is the world’s first desktop hybrid laser and blade cutting machine, combining laser engraving, laser cutting and blade cutting, and working with an extremely wide range of materials.
Unlimited creativity in one device
Why combine a laser and a knife cutter in one machine?
Generally, a laser cutter can work very well on many materials, such as wood, metal, and glass. However, for some soft materials, such as vinyl that can be used for DIY T-shirts, sign making, logo making, etc., it is better to use a blade to avoid burnt edges, color change, and toxic fumes generated by laser cutting.
The software makes it easier to switch modes and is more user-friendly.
Supports many types of materials without limitation for your creativity. Stainless steel, acrylic, kraft paper, cardboard, wood board, leather, plastic, MDF, glass, marble, ceramic, jade, etc.
Technologies that create precision and quality
The xTool M1 uses Dual Laser technology to double the laser power. The 10W version is powerful enough to cut up to 8mm of limewood in a single pass.
The xTool M1 10W laser beam is powerful enough to cut through an 8mm thick basswood board in just 1 pass.
Compressed Spot technology provides ultra-high accuracy of 0.01mm, giving amazing detail to each design.
xTool M1 uses FAC lens to reduce the laser spot from 0.15×0.18mm to 0.08×0.08mm to achieve higher engraving accuracy. Precise engraving detail and finer cutting edge processing.
AI Control with Built-in Camera
With a 16MP wide-angle camera, xTool M1 10W shows a preview of your design in the work area. With XCS, different designs and patterns can be placed on different materials, completing the processing of all types of materials in one go.
Autofocus: Visual identification, thickness adjustment, and material recognition to ensure high-precision results and eliminate the hassle of manual adjustment.
AI Image Extraction: Select the desired pattern/outline, which is automatically recognized by the AI system. Then you can apply it to any material you want to cut or engrave.
AI Batch Processing: The AI system automatically identifies the shape of the items and processes them in batches at one time.
xTool M1 10W – Safe for Home Use
Closed housing. All technological processes take place inside the housing with the lid of the device closed.
FDA Class I certification.
Efficient ventilation system. The built-in fan with exhaust pipe quickly sucks in and exhausts smoke, dust and sparks.
Blue light filter lid. The viewing lid filters out blue light to protect your eyes.
Simple software
The dedicated software not only supports operation on laptops and computers. xTool M1 10W can also be controlled via smartphone thanks to a dedicated app.
With its software, xTool M1 10W allows you to work smoothly on Windows/macOS/Android/iOS devices.
Edit image, text and QR code engraving to meet various personalization needs.
Offline processing, higher efficiency and easier operation.
Over 500 elements, over 30 fonts, general parameter settings, a variety of editing functions and constantly updated project files with step-by-step instructions.
Cylinder Engraving Stand
By purchasing the optional rotary engraving accessory, you can go from 2D cutting and engraving to cylinder engraving in a few easy steps.
Scope of delivery xTool M1 10W
| Machine Type | Diode Laser & Blade Cutting Machine |
| Cutting Area With Blade (mm) | 365 × 300 |
| Engraving Area (mm) | 385 × 300 |
| Laser Type | Diode |
| Laser Electric Power (W) | 38 |
| Laser Output Power (W) | 10 |
| Laser Wavelength (nm) | 455 |
| Laser Spot Size (mm) | 0.08 × 0.08 |
| Carving Precision (mm) | 0,01 |
| Max. Carving Speed (mm/s) | 250 |
| Routing Speed (mm/s) | 160 |
| Max. Workpiece Height (mm) | 16 |
| Max. Cutting Depth (mm) | 8 (Basswood) |
| AI Camera Information | AI Visual AF / Material Recognition AF / Material Set-Up AF. High-Resolution Ultra-Wide Camera, 16MP, 500 DPI |
| Safety Class | FDA Class I |
| Running Noise, dB | <60 |
| Air Filter | Yes |
| Supported File Types | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| Operating System | Windows, MacOS, iOS, Android |
| Software | xTool Creative Space, Laserbox Software. Laserbox App |
| Connectivity | Wi-Fi, USB |
| Specification xTool M1 10W | |
| Weight Netto (kg) | 9,8 |
| Dimensions Netto (mm) | 557 × 453 × 230 |
