3D printer Builder Extreme 1500 PRO HC

4 094 300 грн.

  • Print volume – 1100*500*820 mm
  • Print speed – up to 300 mm/s
  • Closed chamber
  • Table heating up to 100 °C
  • Built-in uninterruptible power supply system

Description

Builder Extreme 1500 PRO HC – a high-quality 3D printer

Builder Extreme 1500 PRO HC is a high-quality 3D printer for printing large-size models. The worktable area is 1100*500*800 mm. The device is equipped with two extruders, so printing with 2 materials is possible.
If you are planning to buy a large 3D printer with a long X-axis, then the Extreme 1500 PRO HC is ideal. The industrial-grade device is designed for continuous operation. The printer’s technical characteristics expand the scope of user capabilities. Print what you want, when you want, as much as you want!

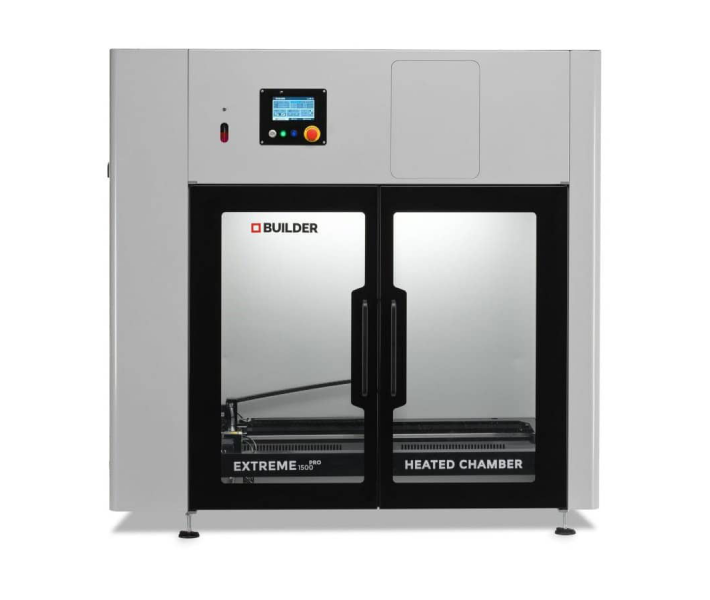

Builder Extreme 1500 PRO HC – high-quality 3D printer, photo



Where is the Extreme 1500 PRO HC 3D printer used?

The huge build area allows the device to be used to print full-size prototypes of large samples. For example, cars, installations or designer products.
The printer is also suitable for printing forms, large tools, and props.
However, large models take a long time to print. Will the printer withstand constant loads?



Uninterrupted printing is the key to high-quality parts

This is an industrial machine, it is designed for continuous operation. The body and parts of the Extreme 1500 PRO HC are made of durable, wear-resistant materials. The design provides for a constant supply of filament in large quantities. The 3D printer has a built-in uninterruptible power supply. It resumes printing jobs in the event of a power outage. The presence of plastic is monitored by a filament presence sensor. These engineering solutions reduce the likelihood of unsuccessful printing even during power outages.



Extreme 1500 PRO HC: 2-thread printing



Features of the Extreme 1500 PRO HC 3D printer

  • Automatic leveling of the work table
  • Large print volume of 1100*500*800 mm
  • Print table heated up to 60°C
  • Ability to print with 2 filaments
  • Wide range of material options (TPU, PLA, ABS, PETG, PVA, etc.)
  • Indication of the presence of filament
  • Built-in uninterruptible power supply system
  • 7-inch touch screen allows you to easily and comfortably control printing
  • Printing via USB or Wi-Fi



Advantages of the Builder Extreme 1500 PRO HC

  • Easy-to-use and easy-to-use device: 7-inch touch screen, wide automation allows even a beginner to quickly master printing skills.
  • Industrial specifications ensure continuous uninterrupted operation.
  • Versatility of use. A set of nozzles of different diameters allows you to optimize printing for different tasks and materials.
  • Thoughtful design and high-quality assembly. Fully enclosed body, precise settings of various print profiles provide high-quality results.
  • Reliable and durable machine is designed for continuous operation and printing on an industrial scale

You can buy an industrial 3D printer from us with a guarantee from the manufacturer Builder and service support.



Extreme 1500 PRO HC: Large build area



Closed housing ensures optimal printing conditions Extreme 1500 PRO HC

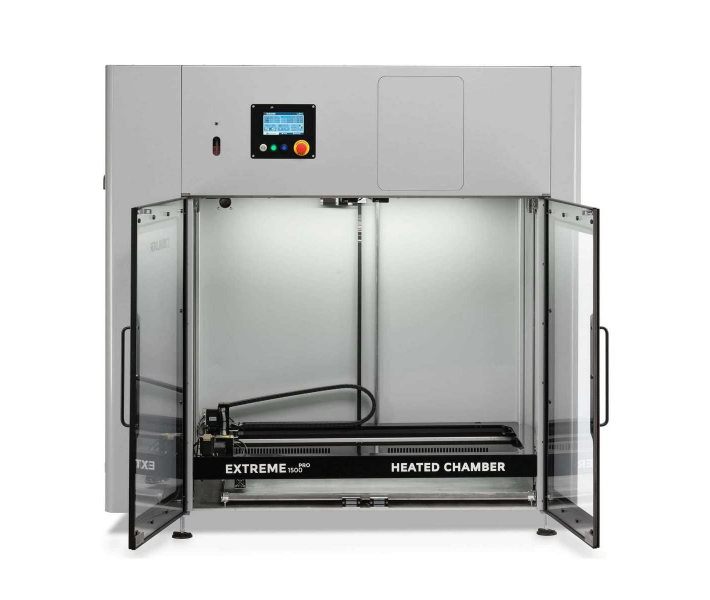

The Extreme 1500 PRO HC 3D printer has a completely closed housing and a heated bed. Thanks to this, the part is firmly fixed on the bed. This is especially important for large parts. A stable temperature in the chamber ensures high print detail.
The printing process can be observed through a glass door. Thanks to the closed design, the noise level from printing is reduced by 40%. A BOFA fume extractor can be installed. This has a beneficial effect on the indoor climate and reduces the risks associated with melting plastic.



What is included in the Builder Extreme 1500 PRO HC package?

  1. 0.4, 0.6 and 0.8 mm nozzles
  2. Maintenance tool kit
  3. Simplify3D software

Simplify3D is fully optimized for large-scale FFF printing with 0.4, 0.8 and 1.2 mm nozzles.



Specifications

Printing TechnologyFDM
Build Field (mm)1100*500*820
Filament Diameter (mm)1,75
Maximum Nozzle Temperature (°C)300
Number Of Extruders1
Chamber TypeEnclosed
Heating The ChamberYes
Plastic DryingYes
AutocalibrationNo
Feeder TypeDirect
Layer Height (micron)200 – 700
Leveling SystemManual bed levelling at installation only
Nozzle Diameter (mm)0.4, 0.6, 0.8
Print Speed (mm/s)200
Maximum Carriage Speed (mm/s)300
Maximum Chamber Temperature (°C)70
Maximum Platform Temperature (°C)100
Platform MaterialAluminium build plate
Supported MaterialsPRO1, PET-G, Nylon, PATH CF15, ABS, ASA, Nylon CF15
Body MaterialAluminium
FeaturesUPS system: possibility to resume print after power failure. Filament detection. BOFA air filter system. Doors open only after print is paused
Supported File TypesSTL
Operating SystemMac, Windows
SoftwareSimplifi 3D
ConnectivityWi-Fi, USB, Ethernet
Power Requirements100-240V, ~10A, 50-60 Hz, 3000W
Manufacturer CountryNetherlands
CertificationsCE, UL
Weight Netto (kg)290,0
Dimensions Netto (mm)1950×950×1850
Dimensions Brutto (mm)2100×1050×2100



Choose industrial equipment from the official representative of the Builder brand in Ukraine



Additional information

Weight225 kg
Dimensions1080 × 1080 × 1750 cm
